Jersey High Speed OpenCut Machine

Detail
Dearton Industrial Co., Ltd, our company is a part of a large diversified group having its operations in Taiwan & ASIA, we are one of the top designing & manufacturing of circular knitting machine in Taiwan since 1991.

Quality First & Upgrade Clients Profits First, this is our spirit.
Over 30 years rich manufacturing experience , we use Japan CNC facilities to produce the knitting parts, such as: Sinker Cam Box, Cam Box, Cylinder, Carriage Ring, Yarn Carriage, therefore, our machinery are high speed type which can produce more fabric! Example: our SKS-SJ4,Single Jersey machine can fit 6F/inch, 5F/inch, 4F/inch. 3.2F & 3F/inch.

              *** All our machines with EUROPE-CE  certification !***

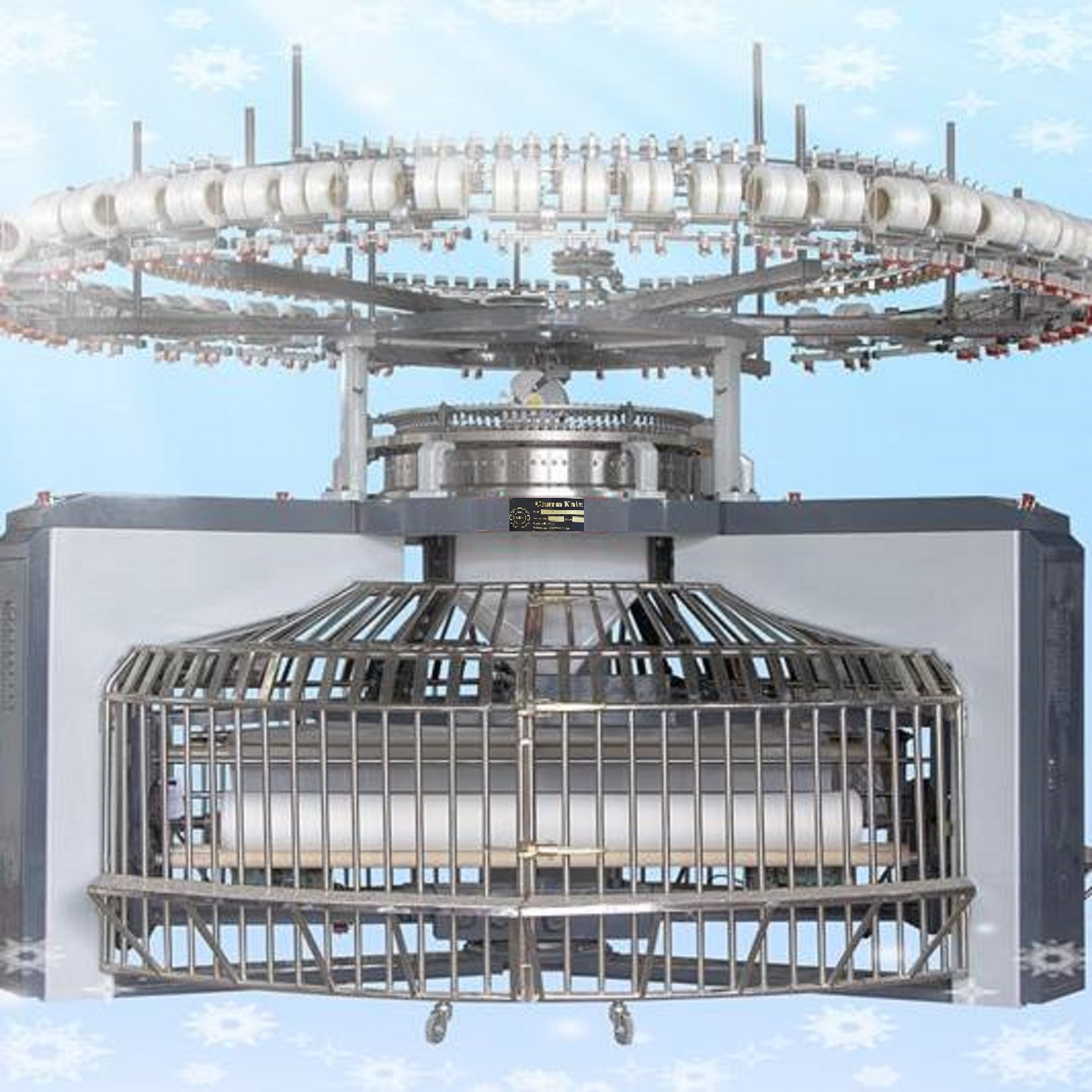

Mode No.: SKS-SJOP.
Name: Single Jersey Open Cut Circular Knitting machine



Specification:
SKS-SJOP Jersey Open Cut Circular Knitting Machine
Diameter  30" - 44"
Gauge  24g /28g/30g/32g/36g/40g
Feeder  3F/inch
Pilot Speed  18 rpm
Normal Speed   25 rpm
Max. Speed  32 rpm
Weight  2500kg -2900kg
Working Space  6 x 6 M

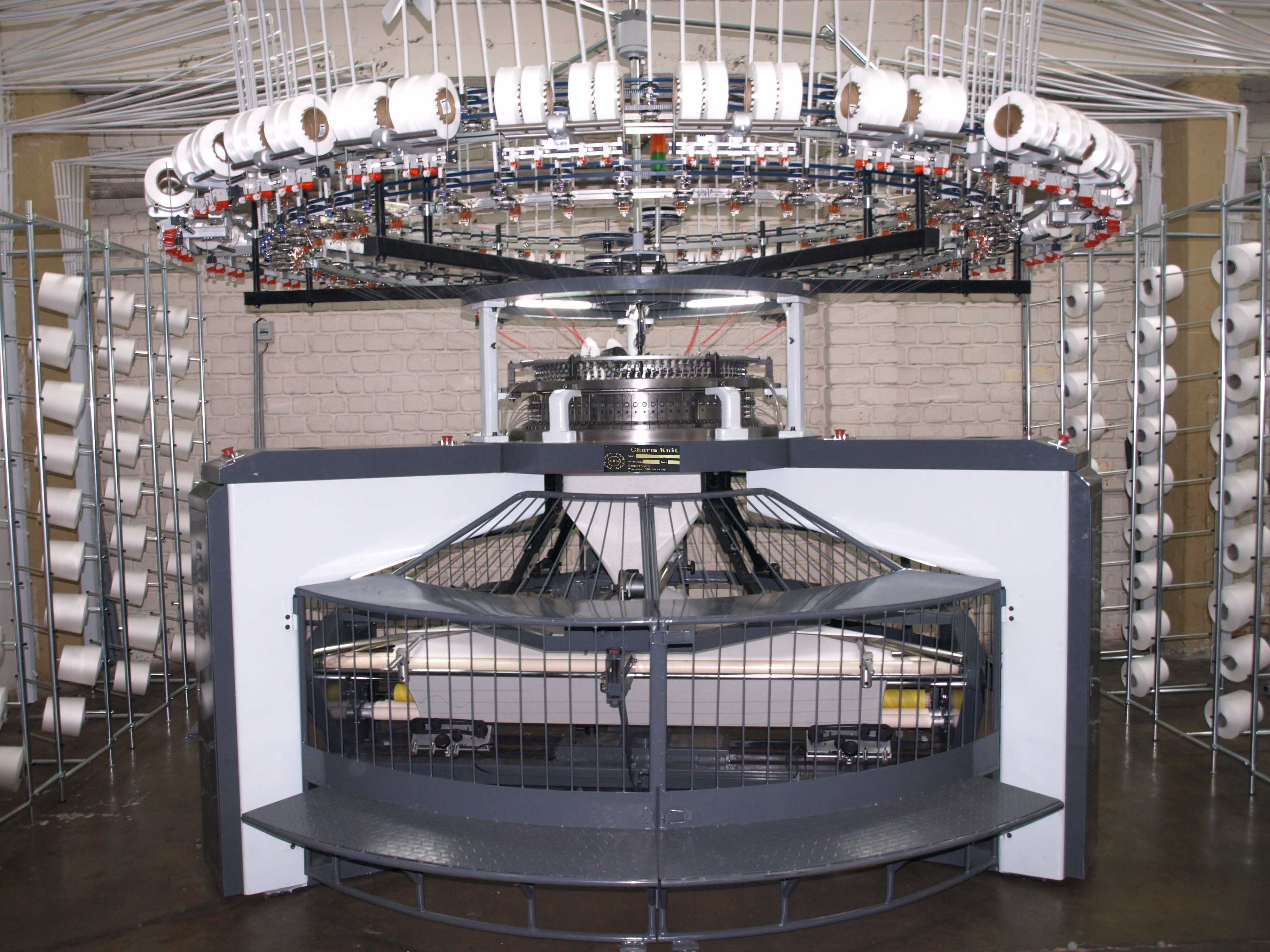

SKS-SJOP, Jersey OpenCut Circular Knitting Machine.


Feature:
  • User-friendly SKS-SJOP, less noise, high speed RPM performance, 100% complete fit quick mass production from fine grade cotton knitting, high quality synthetics fabrics, lux multi-yarns knitting.
  • # SKS-SJ4 can produce the high grade fabrics, Such: Polyester knitted fabrics, T/C, T/R & viscose spandex P/D & printed fabric as below:
  • 1. Medical cotton mesh fabric
  • 2. Home: carpets, towels, blankets, floor blanket, mattress.
  • 3. Fashion: Polo-shirts, scarves, dresses, skirts, stockings etc.
  • 4. Sports: Sports Pants, Tops, shorts, socks, swimwear, tights etc.
  • 5. Mile Silk Brushed Jersey (95% Polyester 5%Spandex)/140-180gsm
  • 6. Coarse jersey fabric (95%Polyester 5%Spandex)/160-180gsm
  • 7. Terry Towel fabric (80% polyester, 20% cotton) /380gsm
  • 8. TR Jersey fabric (65%polyester 35 rayon)/ 160gsm
  • 9. Poly/Rayon Jersey fabric (polyester 60%, 40% rayon)/180gsm

Standard Parts & Brand / Machine
  • 1. NEEDLE/ SINKER: GROZ BECKERT /GERMANY
  • 2. OILER = GERMANY, MEMMINGER P6. 12 TUBE, ELECTRONIC TYPE OR SIMILAR AS.
  • 3. CAM : JAPAN SKDII STANDARD
  • 4. CAM BOX : ONE FEEDER/CAM BOX / 3 FEEDER PER CAM BOX FOR FLEECE KIT.
  • 5. INVERTER: DELTA /5.5 -7.5 KW CAPACITY
  • 6. DIGITAL CONTROL PANNEL (ALL FUNCTIONS INCLUED) – TAIWAN
  • 7. FEEDER : SMG BRAND / STORAGE TEETH MAGNETIC TYPE
  • 8. LYCRA FEEDER: SMG BRAND/ TEETH TYPE.
  • 9. DOUBLE PUSH TYPE SINKER CAM DESIGN.
  • 10. SIDE STAND ALUMINUM TUBE CREEL
  • 11. D/8 TYPE TUBE CREEL WITH TUBE CUTTER
  • 12. CYLINDER DUST CLEANER: (UP SIDE 3 WAY, MIDDLE SIDE 2 WAY FAN)
  • 13. FABRIC CADTRATEX CLOTH SPREADING STAND ) - OPTIONAL.
  • 14. MOTOR 5.5 HP - TECO – TAIWAN
  • 15. CLOTH WINDER WITH 120 VARIABLE SPEEDS
  • 16. CENTRAL STITCH CONTROL SYSTEM ( FLEECE & SINGLE JERSEY)
  • 17. AUTO 360ᵒ TURN ROUND DUST DISPOSAL SYSTEM
  • 18. TOWER SPOT LIGHT (GREEN, RED, YELLOW)
  • 19. NEEDLE DECTECTOR: 3 PCS / EACH MACHINE
  • 20. AIR GUN WITH COL HOSE
  • 21. TOOLS AND TOOL BOX





LOADING / SHIPPING = 100% SECURITY.
