Shoe Sole Injection Machine


SKS-900. Rotary PVC Shoe-Sole Injection Equipment.

  1. This machine is used to produce various kinds of one color soles, slippers, sandals, short-height boots and it is special for produce sports shoes and leisure shoes in all plastic.
  2. It is suitable for all kinds of thermoplastic raw materials, foaming or non-foaming, such as PVC, TPR, PCU etc.
  3. The well-interconnected oil circuit by electric by control can reduce waiting time, quicken production rate,and promote productivity.
  4. Air blowing system device with air release function of mold makes the products lightweight, soft with gloss surface and high value.
  5. Injection pressure and speed of each station can be controlled individually according the different materials and molds by PLC and touch-screen system; It can use different molds at the same machine. It saves the time of mould-change and extends the cooling time.
  6. Servo system could save electricity; Auto opener could save labour (this two items can be selected by customer)

Screw diameter 65mm Heating bands power 7kw
Max. Injection volume 650cm³ Temperature control 4 point
Max. injection stroke 210mm Machine dimension 4200*3500*1650mm
Motor 25hp Installation dimension 4600*3600*2300mm
Clamping force 80tons Machine weight 5500kg
Work stations 24 Space for mould 420*280*260mm

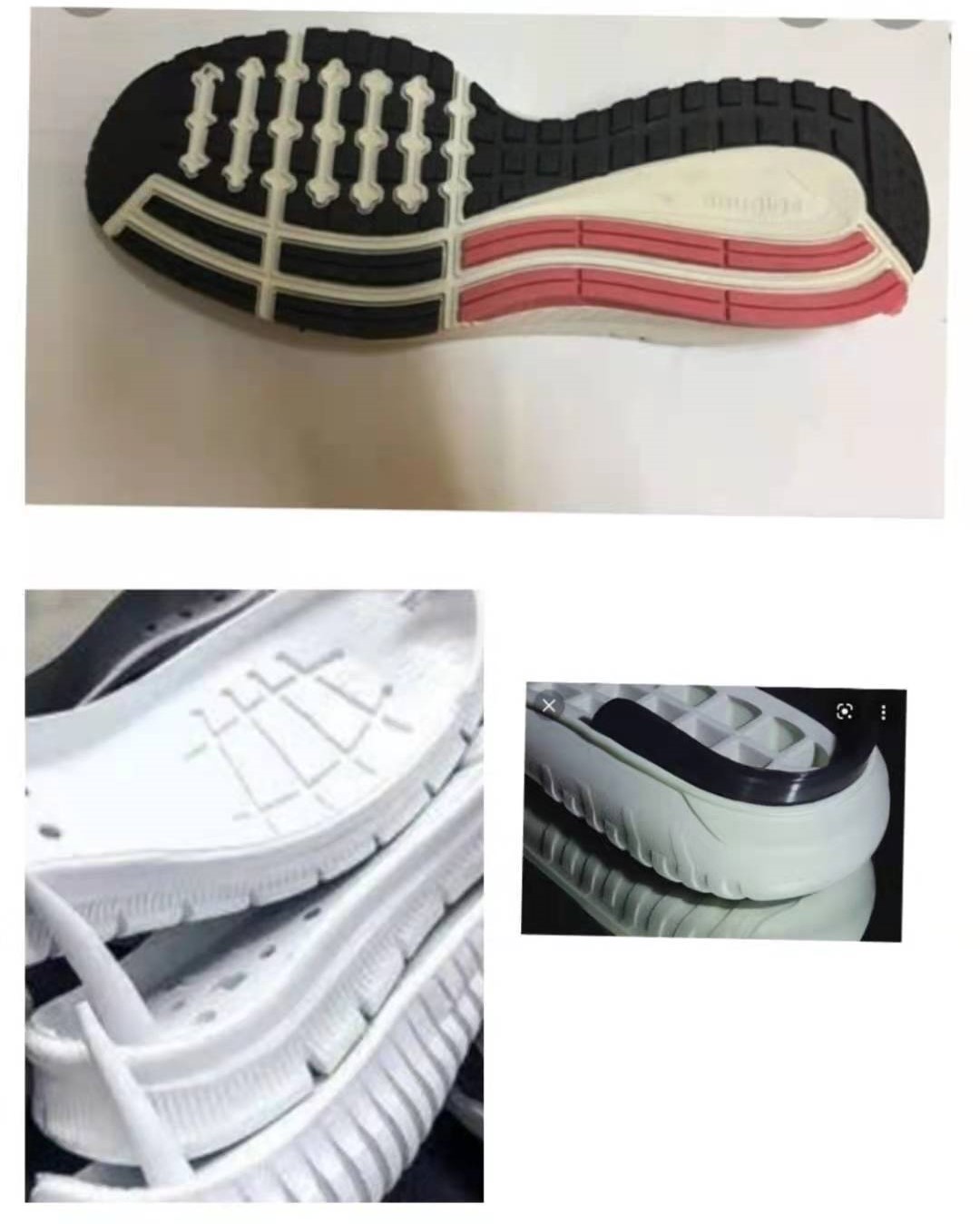

Application & Product
