Terry 5 way Jacquard Mc

#SKS-TJ5: Terry 5 way Fully Jacquard Machines (

Technical Highlights

01. Jacquard Needle Selection Technology
Allows individual needles to be controlled for intricate patterning and jacquard designs.
  This enables complex terry fabric motifs with precise detail.

02. Circular Seamless Knitting
Produces tubular fabric without seams, which cuts down on labor and increases the durability of items
  like towels and blankets.

03. Multi-Feeder Yarn System
Equipped with multiple feeding points, enabling varied yarns for color, texture, or pile height within the
same fabric. Electronic Control Panel with Pattern Storage

04. Features computerized systems (often USB or local storage) with power-off memory, allowing quick design changes, pattern retention, and easy programming.

05. Three-Way Knitting Technique (Knit, Tuck, Miss)
Enables varied stitch structures through knit, tuck, and miss functions for richer, complex textures in jacquard terry fabrics.

Factory Review

Summary Table: 5 Technical Ways Technical Way Description
1. Jacquard Needle Control    Individual needle selection for intricate patterning.
2. Circular Seamless Knit        Makes tubular fabrics without seams efficiently.
3. Multi-Feeder System Allows use of multiple yarn types for variation.
4. Electronic Pattern Control Digital input, storage, and recall of jacquard designs.
5. Knit/Tuck/Miss Stitch Options     Advanced stitch variations for texture and complexity.

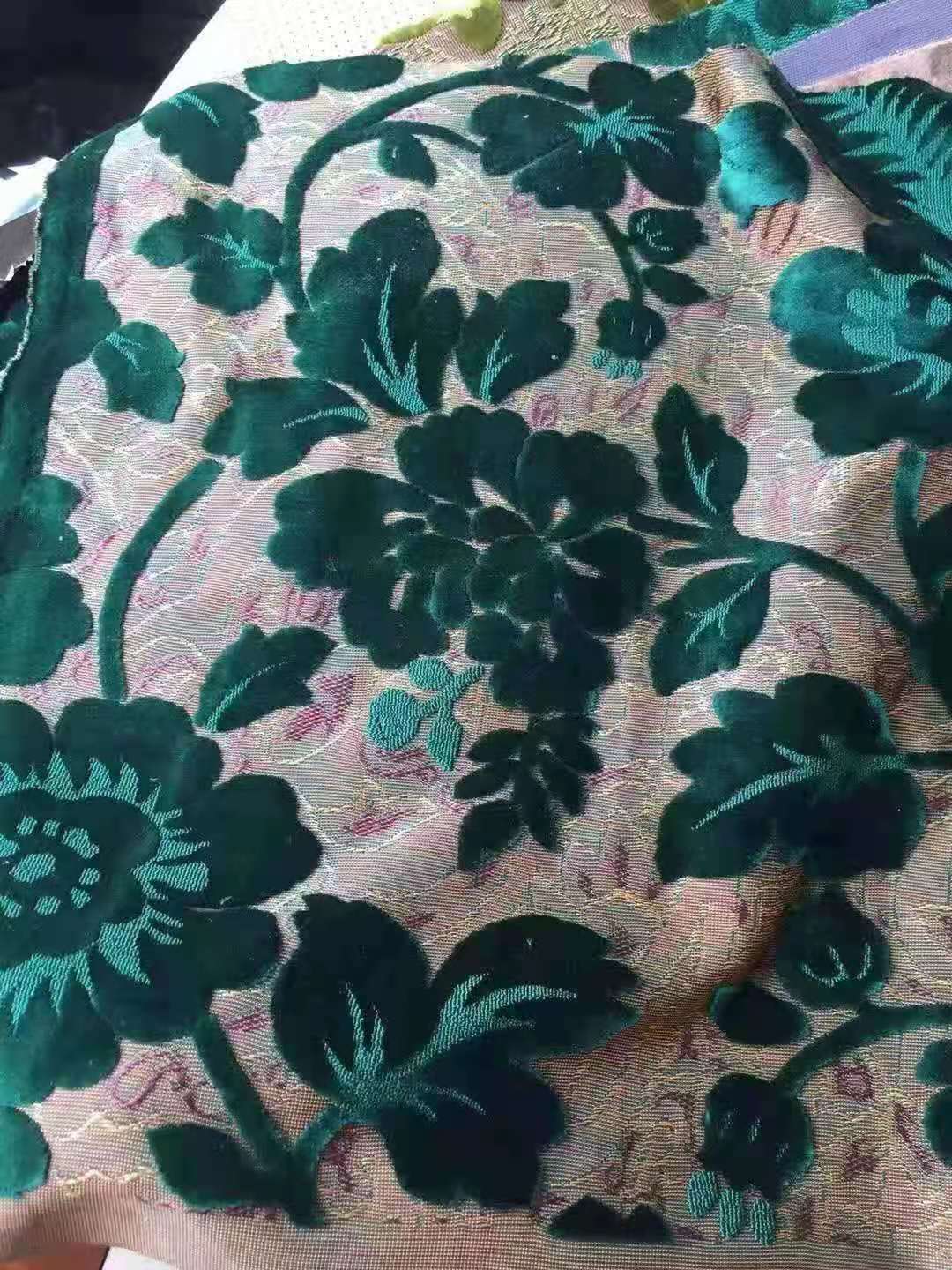

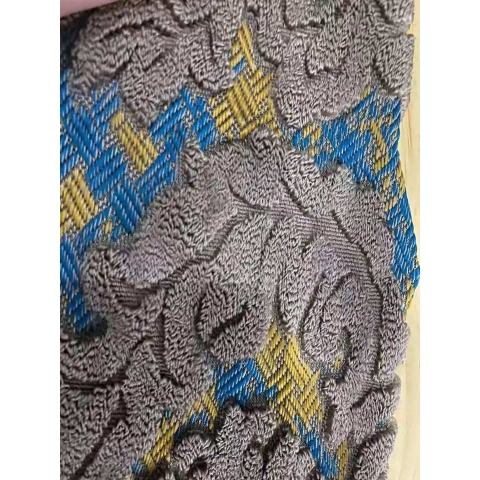

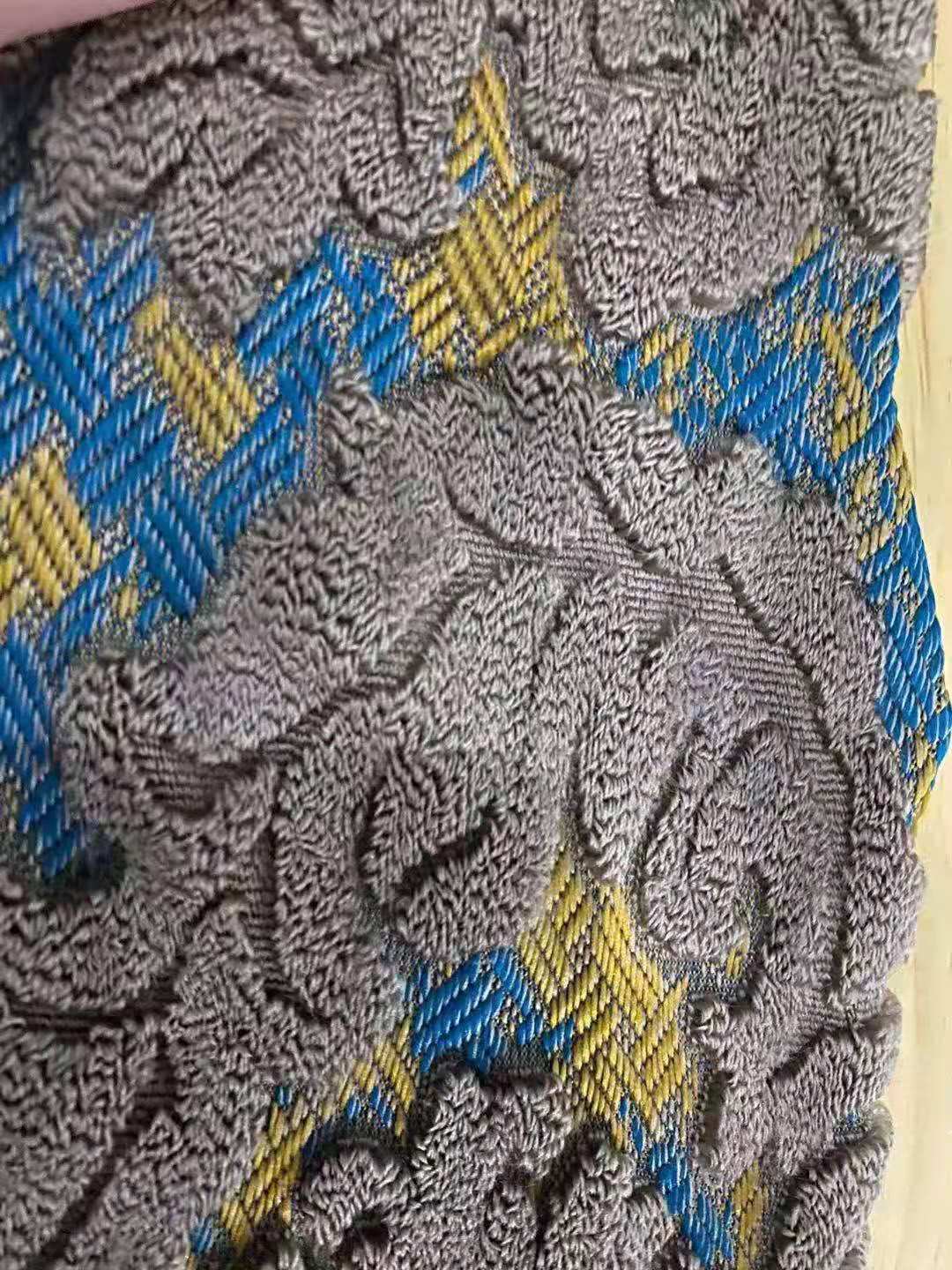

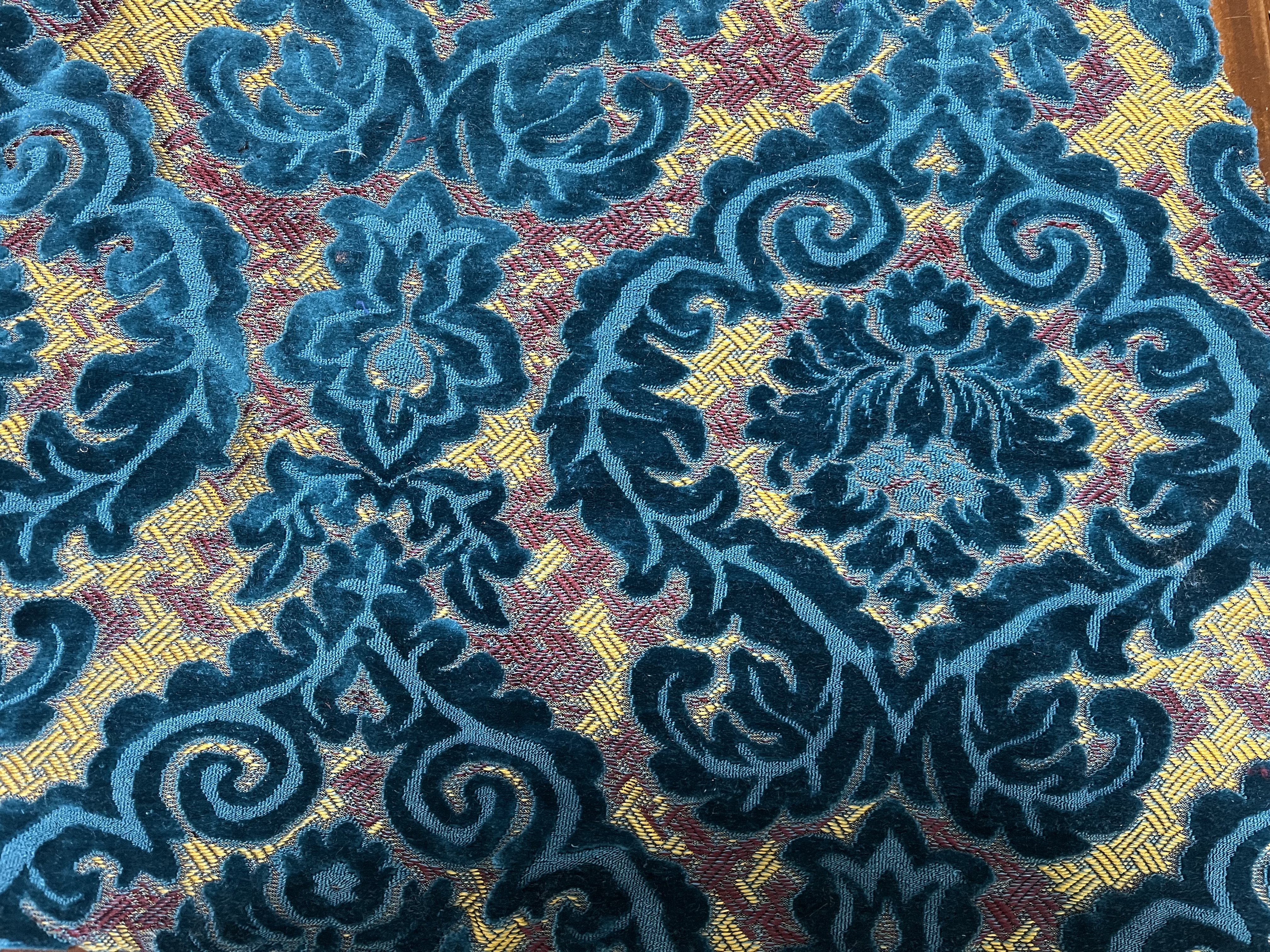

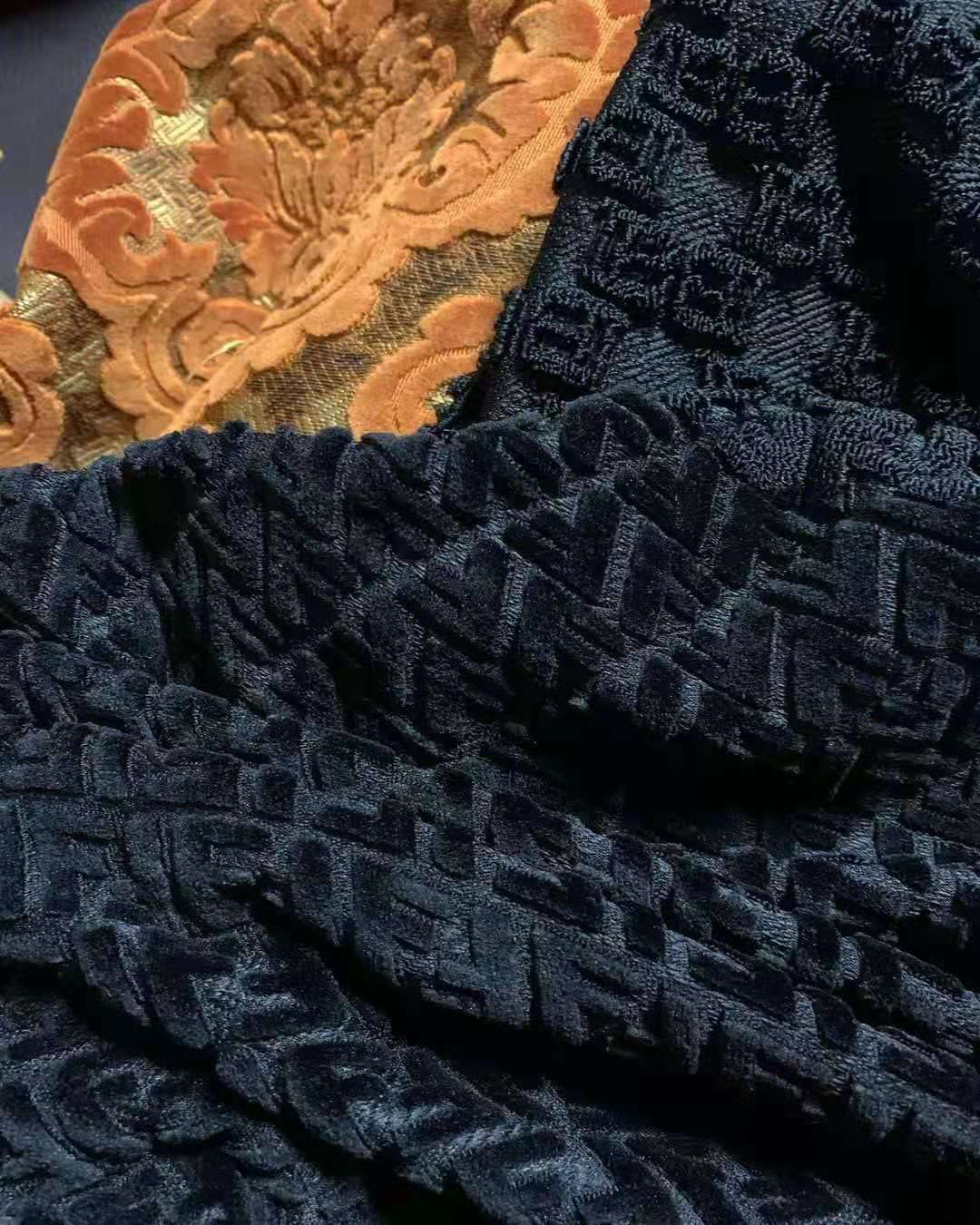

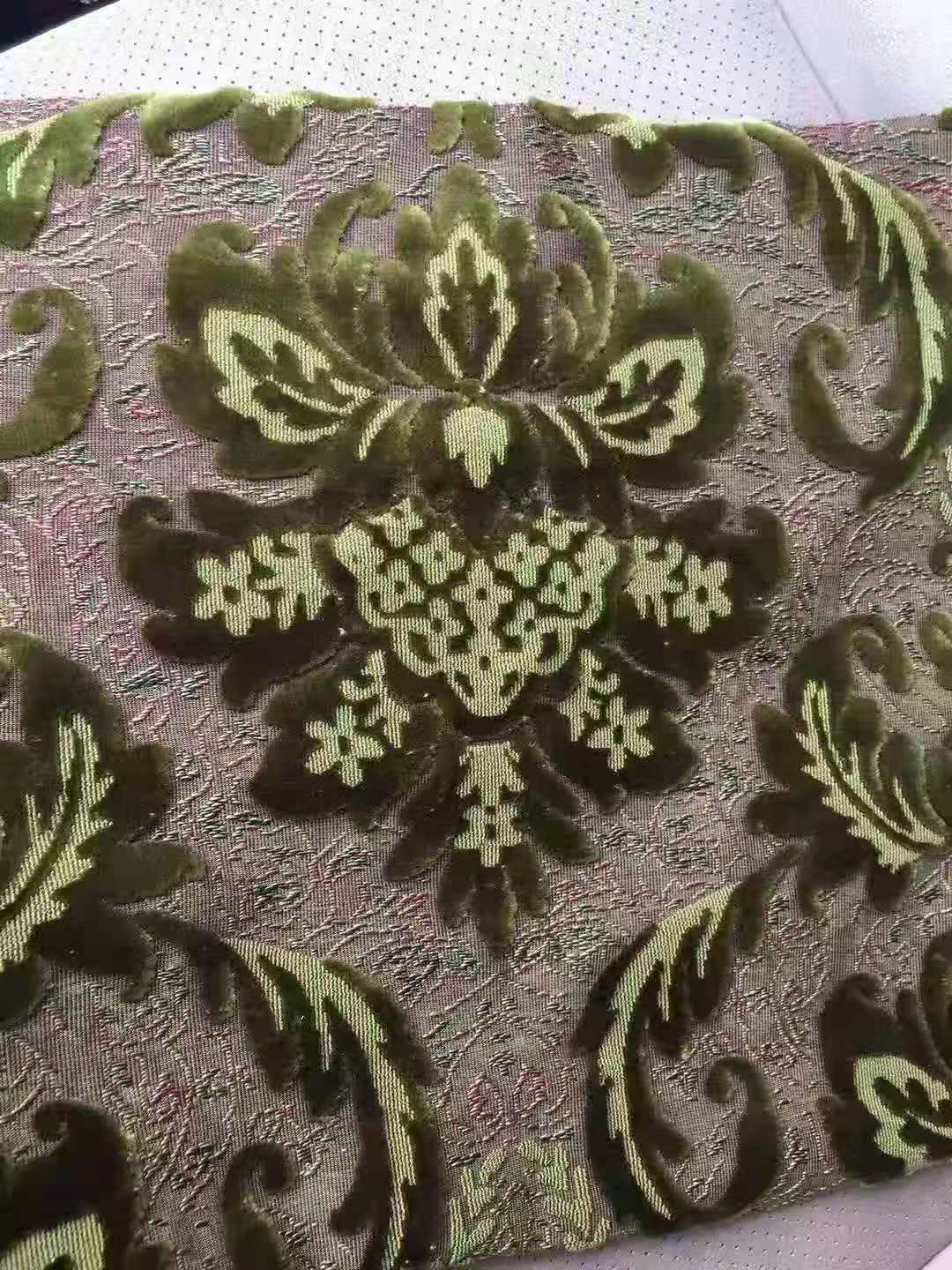

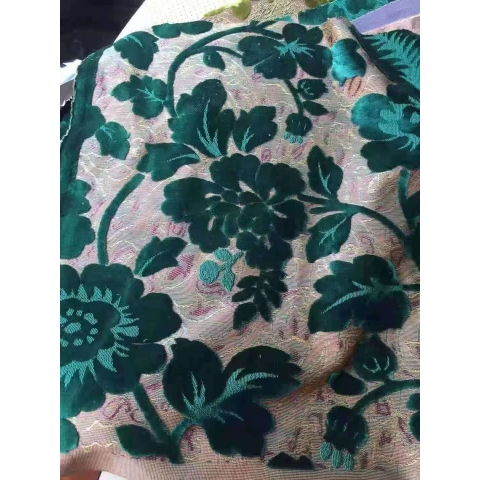

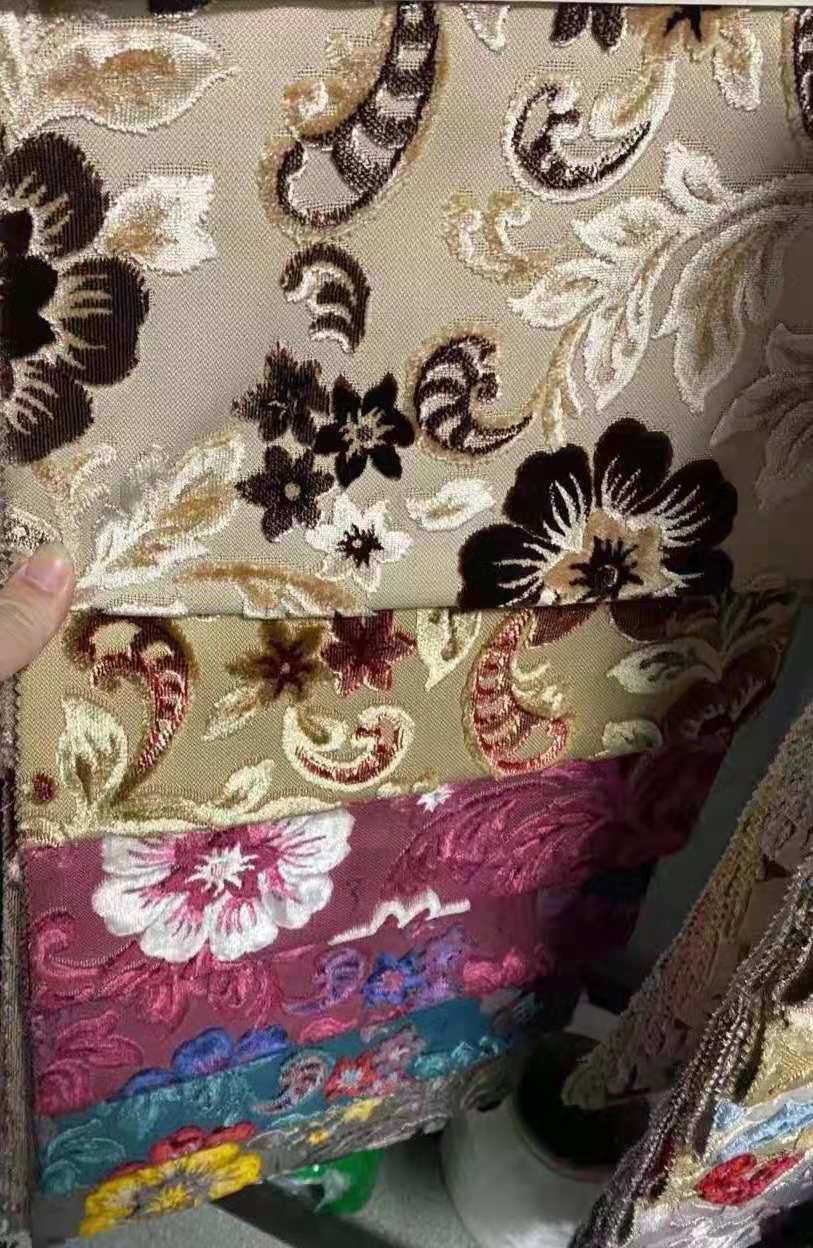

#SKS-TJ5 Fabric Gallery

Standard Parts & Brand / Machine

Variable Fabric Density
Adjusts loop pile thickness, influencing absorbency and texture—key for items like towels with tailored feel and function.
Energy-Efficient & High-Speed Operation
Modern machines optimize power usage and run at competitive speeds (~12–25 RPM), improving throughput and sustainability.
- 1. NEEDLE/ SINKER: GROZ BECKERT /GERMANY
- 2. PULSONIC 6 OILER / GERMAN MEMMINGER BRAND.
- 3. CAM : JAPAN SKDII STANDARD
- 4. CAM BOX : ONE FEEDER/CAM BOX / 3 FEEDER PER CAM BOX FOR FLEECE KIT.
- 5. INVERTER: DELTA /5.5 -7.5 KW CAPACITY
- 6. DIGITAL CONTROL PANNEL (ALL FUNCTIONS INCLUED) – TAIWAN
- 7. FEEDER : SMG BRAND / STORAGE TEETH MAGNETIC TYPE
- 8. LYCRA FEEDER: SMG BRAND/ TEETH TYPE.
- 9. DOUBLE PUSH TYPE SINKER CAM DESIGN.
- 10. SIDE STAND ALUMINUM TUBE CREEL
- 11. D/8 TYPE TUBE CREEL WITH TUBE CUTTER
- 12. CYLINDER DUST CLEANER: (UP SIDE 3 WAY, MIDDLE SIDE 2 WAY FAN)
- 13. FABRIC CADTRATEX CLOTH SPREADING STAND ) - OPTIONAL.
- 14. MOTOR 5.5 HP - TECO – TAIWAN
- 15. CLOTH WINDER WITH 120 VARIABLE SPEEDS
- 16. CENTRAL STITCH CONTROL SYSTEM ( FLEECE & SINGLE JERSEY)
- 17. AUTO 360ᵒ TURN ROUND DUST DISPOSAL SYSTEM
- 18. TOWER SPOT LIGHT (GREEN, RED, YELLOW)
- 19. NEEDLE DECTECTOR: 3 PCS / EACH MACHINE
- 20. AIR GUN WITH COL HOSE
- 21. TOOLS AND TOOL BOX
