SKS-DJ6. Double Jersey Circular Knitting Machine

1. What is Double Jersey Fabric?
Double jersey fabric is a weft-knitted fabric produced using two sets of needles on a double jersey circular knitting machine (also called interlock machine). It has two layers of fabric knitted together, making it thicker, more stable, and less stretchy than single jersey.

2. Structure & Characteristics

Knitting Type Weft knitting
Machine Type Double jersey circular knitting machine (cylinder + dial)
Needles Two sets: Cylinder & Dial
Fabric Faces Looks the same on both sides (smooth and flat)
Stretch Less widthwise stretch than single jersey
Thickness Thicker and heavier
Curling Non-curling edges
Appearance Clean, structured, smooth on both sides

3. GSM (Grams per Square Meter)

Typical GSM Range: 180–320 GSM
Lightweight: 180–220 GSM (used for t-shirts)
Midweight to Heavyweight: 230–320 GSM (used for fashionwear, uniforms, sweaters)
GSM depends on yarn count, stitch density, and knitting tension

4. Knitting Technique

Needle Arrangement: Two needle beds — cylinder (vertical) and dial (horizontal)

Yarn Feeders: 2 or more yarn feeders (can go up to 72 or more for fine gauges)

Machine Gauges: Commonly 18G, 24G, 28G, 32G

Yarn Types: Cotton, Polyester, Rayon, Modal, or blends (with or without Lycra)

Loop Formation: Each course involves synchronized intermeshing loops from front and back needle beds.

5. Cam Setting
The cam setting determines the movement of the needles and loop formation.

Component Setting / Function
Cylinder Cams Knit / Miss / Tuck (set for front loops)
Dial Cams Knit / Miss / Tuck (set for back loops)
Typical Setup Both beds in full knit for standard double jersey
Cam Height & Timing Affects stitch length, GSM, and fabric tightness
Tension Setting Balanced to avoid fabric distortion
Stitch Length Adjusted by cam depth — deeper = longer stitch = lower GSM

Advanced Variations:
By changing cam settings, you can create Piqué, Interlock, Rib-based or structured patterns
on double jersey machines.

6. Applications

Polo shirts
Uniforms
Cardigans and knit jackets
Dresses and skirts
Sportswear and outerwear
Structured knitwear

7. Advantages

Stable and dimensionally strong
Reversible look
Comfortable with clean drape
Non-curling edges
Ideal for structured garments

Grey Viscose Double Jersey
Description: A smooth, medium-weight fabric with a soft drape, suitable for garments like dresses and tops.
Material: Viscose blend
Color: Chiseled Stone (Grey)

Pink Double-Sided Brushed Jersey
Description: A soft, brushed fabric on both sides, offering warmth and comfort, ideal for loungewear and cozy garments.
Material: Polyester blend
Color: Light Pink

Latte Elastic Double Jersey
Description: A stretchy, elastic fabric with a smooth finish, ideal for form-fitting garments like leggings and bodycon dresses.
Material: Elastic blend

Scuba Fabric
Composition Typically polyester + spandex or nylon + spandex
Knit Type      Double knit, smooth on both sides
Thickness      Medium to thick (can mimic neoprene)
Elasticity Moderate 4-way stretch
Feel Spongy, structured, with smooth hand feel
GSM Range   Usually 280–400 GSM
Common Uses     Dresses, skirts, sportswear, fashionwear, structured garments
Edge behavior     Clean-cut with minimal fraying
Cam setting Double jersey machine, both beds knitting; tight loop formation to achieve density

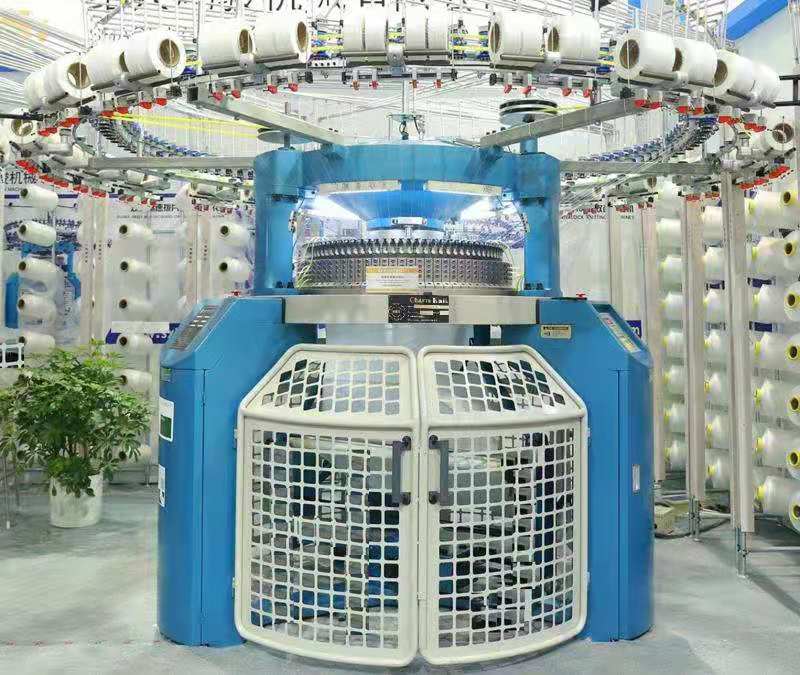

SKS-DJ6/ Double Jersey circular Knitting machine
Inch: 28" - 44"
Gauge: 28g - 36g
Feeder: 2.6F/3.0F/3.2F

SKS-DJ6/ Productivity

SKS-DJ6. Double Jersey Circular Knitting Machine
Technical Features

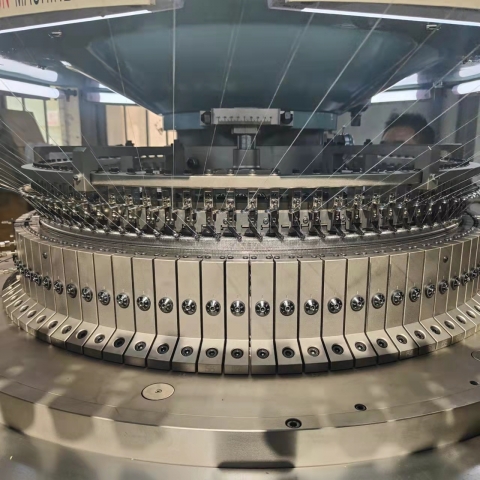

Bed Configuration: Two needle beds: cylinder (vertical) and dial (horizontal).
Needle Type: Latch needles, arranged in both beds
Frame: Heavy-duty cast iron or steel base for reduced vibration and enhanced stability
Feeder System: 2 to 4 feeders per inch, depending on gauge and machine diameter
Diameter: Commonly from 14” to 44”, depending on fabric width requirement
Gauge: Typically from 14G to 36G, based on fabric fineness (28G for scuba/ponte, 18G for fleece)
Cam Setting: Independent cam boxes for both cylinder and dial, with knit/miss/tuck capability.
Timing Adjustment Precise cam and dial gear synchronization for double-knit structure integrity.
Stitch Length Controller: Micro-adjustment for GSM and tightness control.
Yarn Carrier Control:
Rotary or electronic yarn carrier for consistent feeding and less breakage.
Take-Down System : Positive take-down or tension-controlled rolling to ensure uniform fabric tension.
Seed: Variable up to 20–35 RPM, depending on diameter and fabric type
Lubrication Automatic centralized oiling system to reduce wear and tear on needles and cams
Auto-Stop Sensors Yarn break, fabric roll full, or needle break detection
Low Noise/Low Vibration Engineered gear and belt system for smooth operation
Touchscreen HMI Panel For setting cam profiles, production counts, stitch lengths, and alarms
Eco Mode Energy-efficient motor (servo-driven) and smart drive control for power savings
Higher stitch precision and loop formation consistency
Durable and versatile for heavy-duty or fine gauge applications
Ideal for high-speed, low-defect production
Supports modern blends (e.g. poly-spandex, modal, bamboo) and technical knits

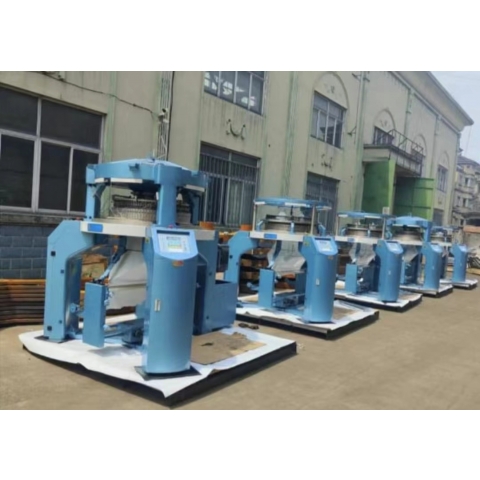

#SKS-DJ6 / PILOT RUN BEFORE SHIP.

Buyers happy to have our #SKS-DJ6
Size: 32" x 32g x 102F / 30"x 32g x 96F

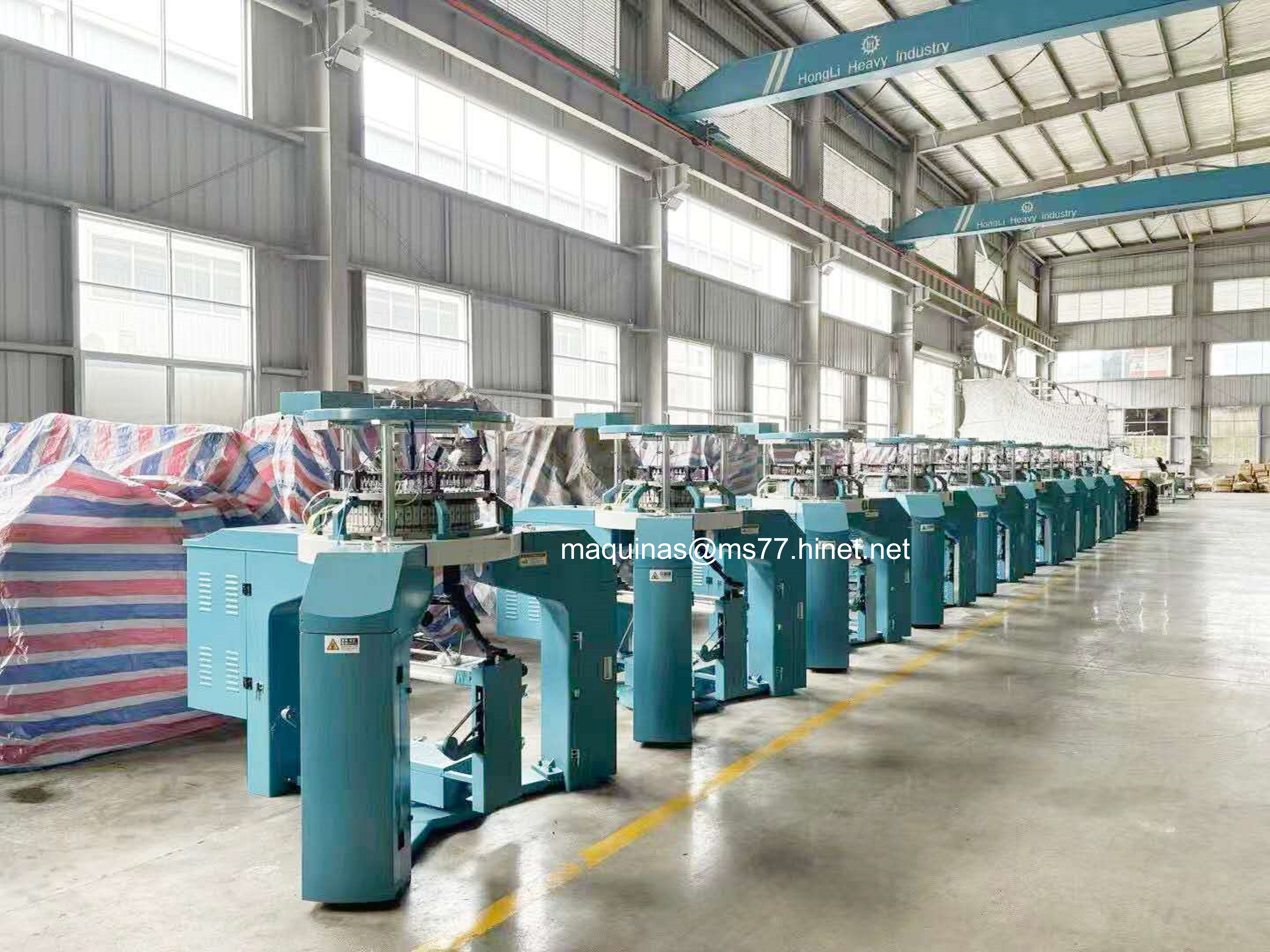

Our enterprise is a part of a large diversified group and we have our
factories in Taiwan and China for the Design and production of the
High-Quality-Circular Knitting Machine. We have a group of professional
Technicians and we have vertically integrated design, and manufacturing
capabilities for high-quality circular knitting Machines! We have been
providing brands with the highest quality guarantee, our company has
continued to successfully act as a silent and competent technical
manufacturer for many years.

Core Value
1. We have 35 years of production experience from Taiwan since 1987.

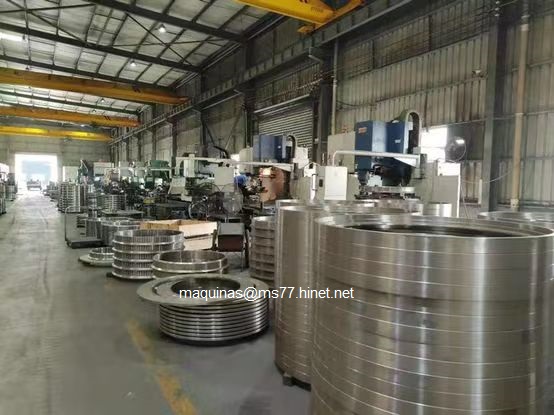

we have Japan CNC facilities to produce the knitting parts, such as:
Sinker Cam Box, Cam Box, Cylinder, Carriage Ring, Yarn Carriage.
All our circular knitting machines with solid Strong quality with high speed.

2. Our Machinery is being rewarded with CE & ISO-9001 Certification.

3. Our circular knitting machine innovation upgrades with German knitting
machine technical synchronization, inheritance of Taiwan knitting spirit
to the pursuit of knitting technological innovation to assure worldwide
knitting mills use our circular knitting machine.

Products Range

Single Jersey Machine		Double Jersey Machine
SKS-SJ4	Single Jersey Machine	SKS-DJ6	Double Jersey Machine
SKS-SJOC	Single Jersey Opencut Machine	SKS-DJOC	Double Jersey Opencut Machine
SKS-FL3	Three end Fleece Machine	SKS-RB22	Rib circular machine
SKS-SJJ	Fully Jacquard Jersey Machine	SKS-DJJ	Fully Jacquard Double Jersey Machine
SKS-SJJ4C	Jacquard 4 color stripper machine	SKS-HP	High Pile Plush Machine
SKS-SJB	Jersey Body Size Machine	SKS-DJB	Double Jersey Body SIze Machine
