SKS-SJ4 Single Jersey Machine

#SKS-SJ4, High Speed Single Jersey Fabric circular knitting machine.

What is Single Jersey Fabric ?
Single Jersey is a weft-knitted fabric made using a single set of needles. It's one of the most common and versatile knit fabrics, typically lightweight, soft, and stretchy, with one smooth side (face) and one looped side (back).
Applications: T-shirts, underwear, dresses, babywear, lightweight sportswear

Types of Single Jersey Fabric
1.   100% Cotton Single Jersey
Soft, breathable, and natural feel. Ideal for everyday casualwear.
2.   Cotton-Polyester Blend Jersey
Offers better durability, wrinkle resistance, and moisture-wicking. Great for multi-functional garments.
3.   Viscose / Modal Jersey
Exceptionally smooth and drapey with a luxurious texture. Commonly used in fashionwear.
4.   Spandex / Elastane Jersey (Lycra Jersey)
Contains added stretch (usually 5–10%) for better flexibility. Perfect for activewear and fitted clothing.
5.   Slub Jersey
Made with slub yarn for a naturally textured and slightly uneven surface. Offers a casual look.
6.   Melange Jersey
Created from blended or mixed-color yarns to achieve a soft, heathered appearance.
7.   Organic Jersey
Made from certified organic cotton. A sustainable and eco-friendly fabric option.

The GSM of single jersey varies based on fabric purpose:
120–150 gsm   Lightweight – Ideal for summer T-shirts, undergarments
160–180 gsm   Medium weight – Standard for casual T-shirts
180–220 gsm   Heavier – Premium T-shirts, polos, fashionwear
220–280 gsm   Heavy – Sweatshirts, structured tops (less common in single jersey)

We are a leading manufacturer of circular knitting machines, proudly established in Taiwan since 1987. As part of a large and diversified industrial group, we bring decades of expertise in textile machinery manufacturing. In addition to our headquarters in Taiwan, we operate our own modern production facilities in China, ensuring high efficiency, quality, and consistency across our entire product range

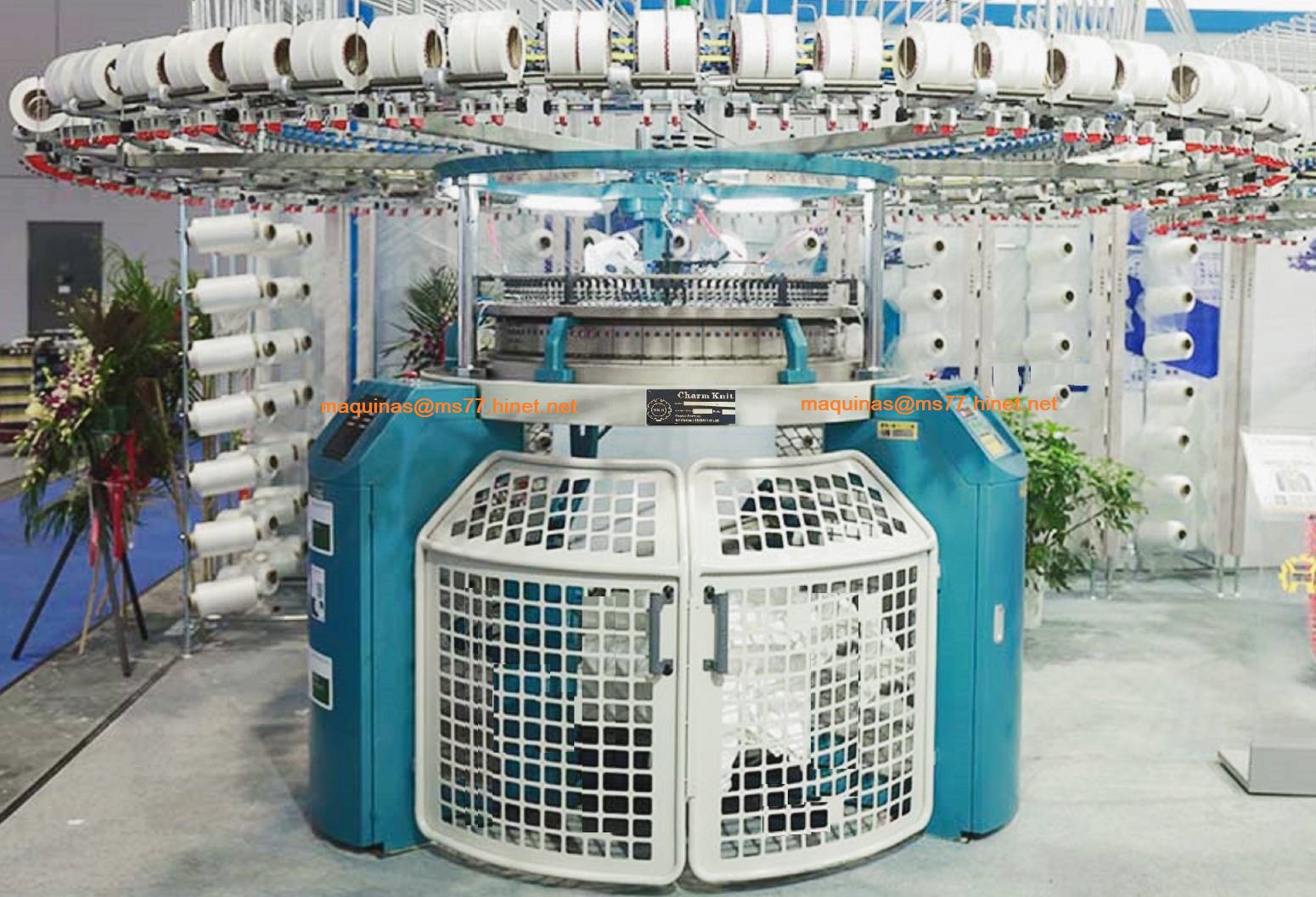

SKS-SJ4/ Single Jersey circular Knitting machine
Inch: 9"- 50"
Gauge: 24g - 40g
Feeder: 3F/3.2F/4.0F/5.0F

SKS-SJ4 can add the kit ( 20g Fleece invisible three thread ) for exchangeable. This machine can knit 24g/28g jersey fabric, also, it can knit 20g fleece three thread fabric ( fish scale fabric, drill flannelette, especially raw silk fleece, snow canvas, dobby fleece fabric & other complicated fabric)

1. SKS-SJ4, Single Jersey Circular Knitting Machine is designed with the best heat dispersion material, Machine user the world famous needle brand – GERMAN Groz Beckert with high superior quality Japan Fuji inverter and solid Control Panel, all solid parts with excellent quality!

2. SKSJ4. It can monitor the working condition of the machine and record the knitting data so that the operator clear ware of the knitting condition to keep the machine in its superior function and running.

3. SKS-SJ4, The machine designed with four tracks cams on cylinder and central stitch systems, which is designed to knit all kinds of single jersey fabrics (sanded single, ringed, lycra ringed single, boucle single, Pique, Lacoste, Swimwear, silvery single jersey and more). Fabric density & fabric structure can be precise slightly adjusted easily!

4. Central Stitch Adjust device is the standard for all #SKS-SJ4 series. Excellent design with superior alloy material of cams and cam box which provides more maneuverability by the arrangement of cams and needles.

SKS-SJ4/ Single Jersey circular Knitting machine

SKS-SJ4/ Single Jersey circular Knitting machine

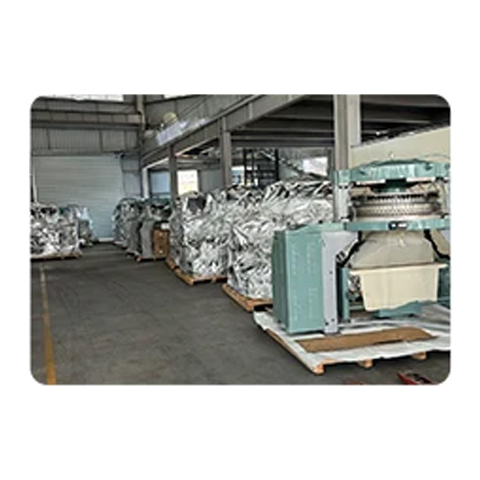

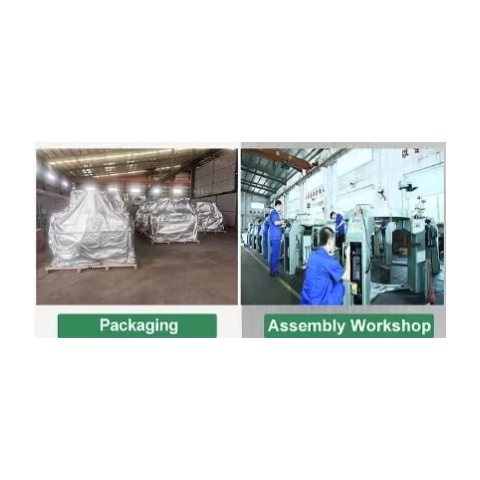

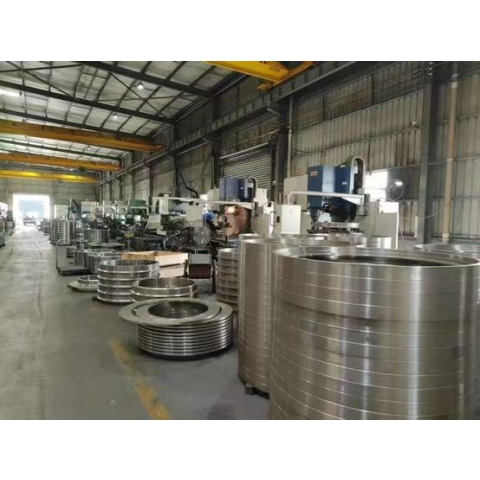

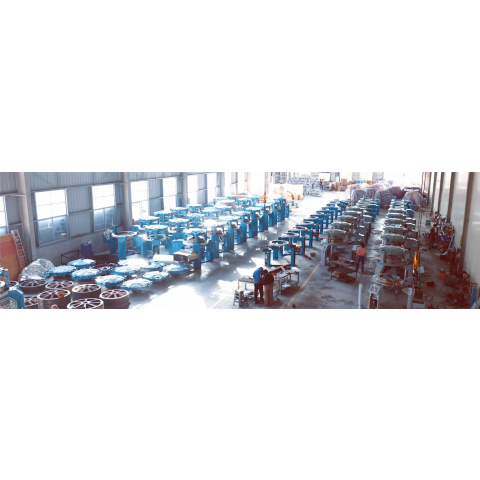

Factory Review

SKS-SJ4, Beautiful Jersey Fabric

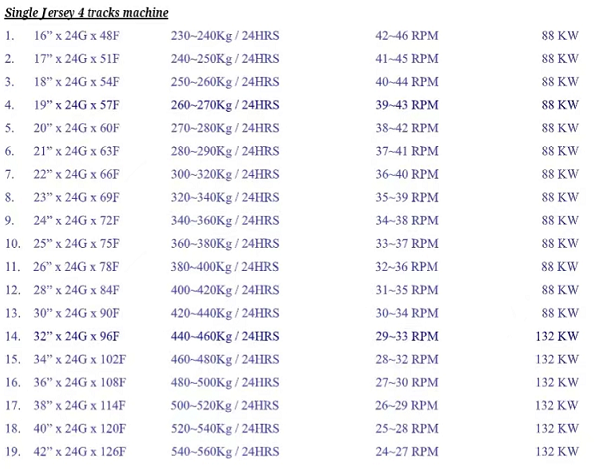

#SKS-SJ4 / Productivity:

#SKS-SJ4 Feature:

Unique design for 20g FLEECE KIT exchanged.
User-friendly SKS-SJ4, less noise, high speed RPM performance, 100% complete fit quick mass production from fine grade cotton knitting, high quality synthetics fabrics, lux multi-yarns knitting.
# SKS-SJ4 can produce the high grade fabrics, Such: Polyester knitted fabrics, T/C, T/R & viscose spandex P/D & printed fabric as below:
1. Medical cotton mesh fabric
2. Home: carpets, towels, blankets, floor blanket, mattress.
3. Fashion Polo-shirts, scarves, dresses, skirts, ..etc.
4. Sports: Sports Pants, Tops, shorts, socks, swimwear, tights etc.
5. Mile Silk Brushed Jersey (95% Polyester 5%Spandex)/140-180gsm
6. Coarse jersey fabric (95%Polyester 5%Spandex)/160-180gsm
7. Terry Towel fabric (80% polyester, 20% cotton) /380gsm
8. TR Jersey fabric (65%polyester 35 rayon)/ 160gsm
9. Poly/Rayon Jersey fabric (polyester 60%, 40% rayon)/180gsm

Standard Parts & Brand / Machine

1. NEEDLE/ SINKER: GROZ BECKERT /GERMANY
2. PULSONIC 6 OILER / GERMAN MEMMINGER BRAND.
3. CAM : JAPAN SKDII STANDARD
4. CAM BOX DESIGN OK FOR EUROPE TYPE & ASIA TYPE.
5. INVERTER: DELTA /5.5 -7.5 KW CAPACITY
6. DIGITAL CONTROL PANEL– TAIWAN BRAND.
7. FEEDER: STORAGE TEETH MAGNETIC TYPE
8. LYCRA FEEDER: TEETH TYPE.
9. DOUBLE PUSH TYPE SINKER CAM DESIGN.
10. SIDE STAND ALUMINUM TUBE CREEL
11. D/8 TYPE TUBE CREEL WITH TUBE CUTTER
12. CYLINDER DUST CLEANER: TAIWAN BRAND.
13. FABRIC CADTRATEX CLOTH SPREADING STAND )
14. MOTOR 5.5 HP - TECO – TAIWAN BRAND.
15. CLOTH WINDER WITH 120 VARIABLE SPEEDS
16. CENTRAL STITCH CONTROL DEVICE.
17. AUTO 360ᵒ TURN ROUND DUST DISPOSAL SYSTEM
18. TOWER SPOT LIGHT (GREEN, RED, YELLOW)
19. NEEDLE DECTECTO: 3 PCS / EACH MACHINE
20. AIR GUN WITH COL HOSE
21. TOOLS AND TOOL BOX

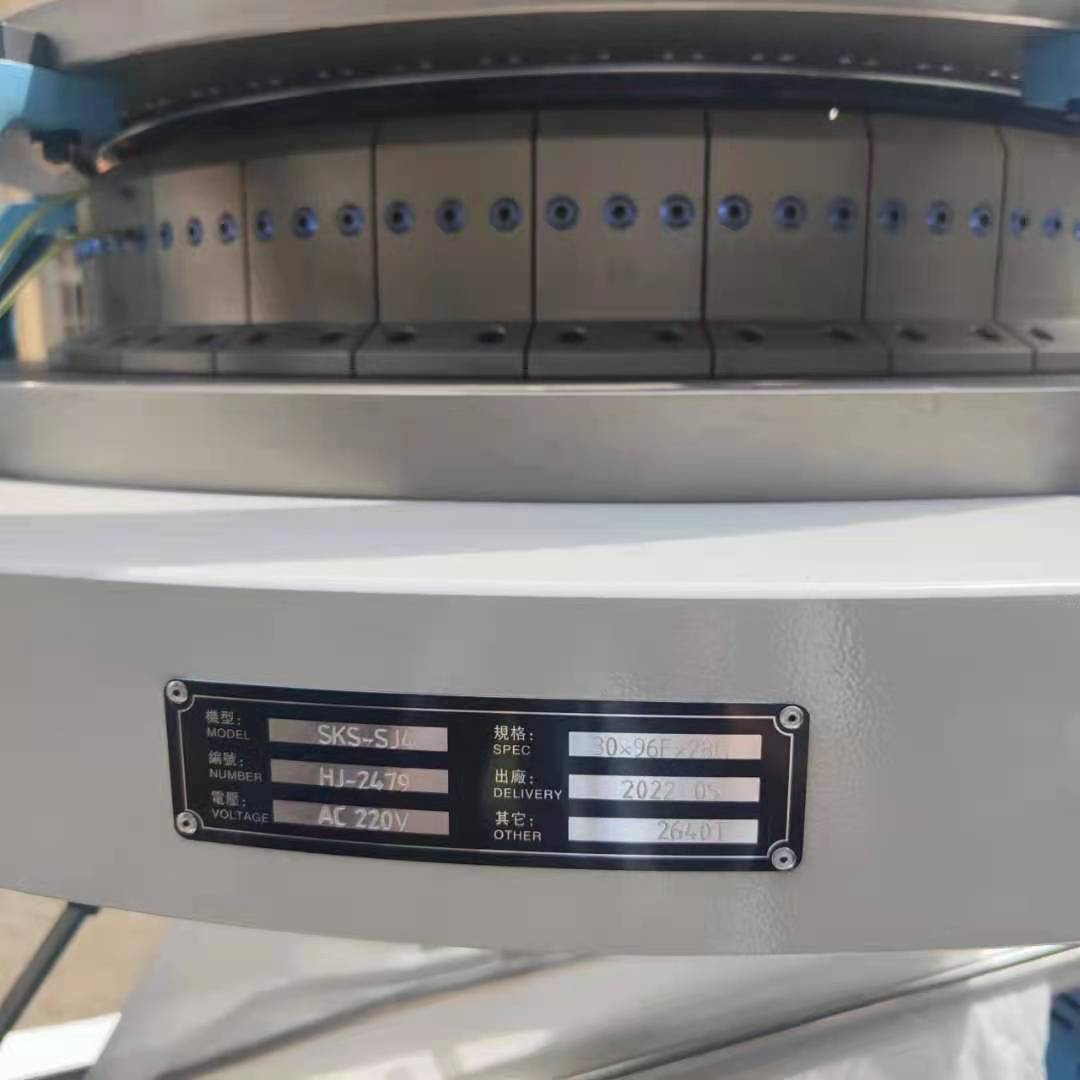

SKS-SJ4/ Single Jersey circular Knitting machine

#SKS-SJ4 / PILOT RUN BEFORE SHIP.

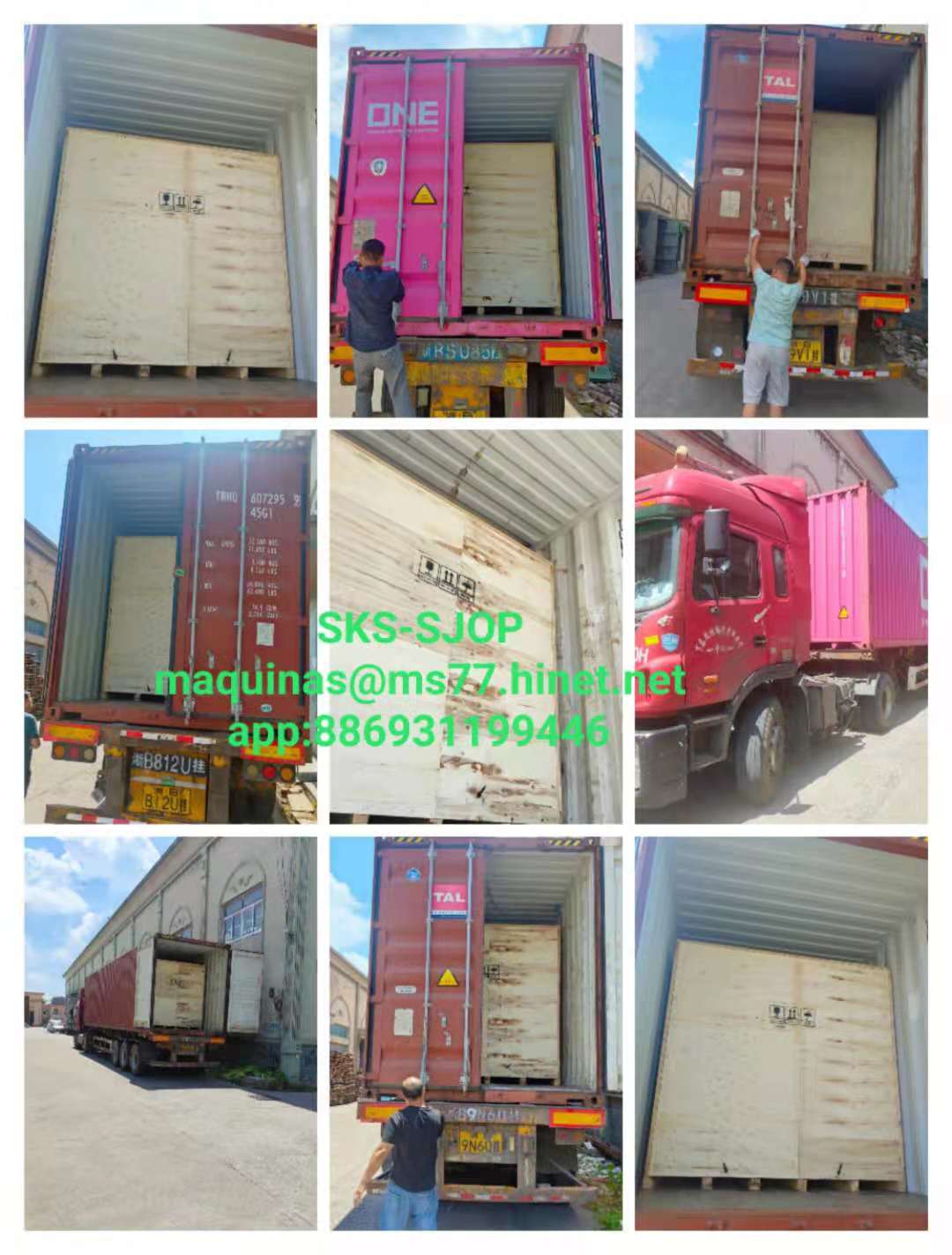

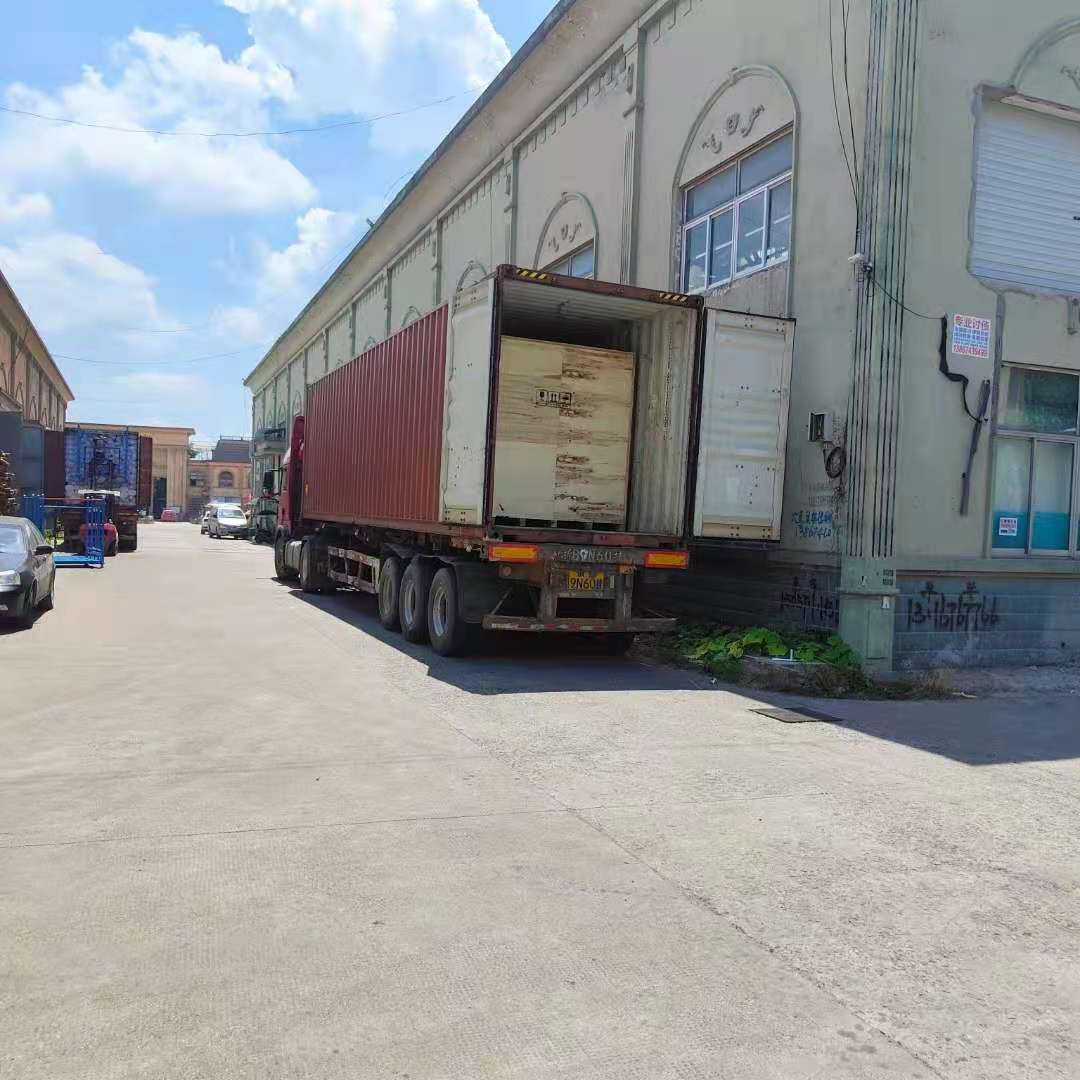

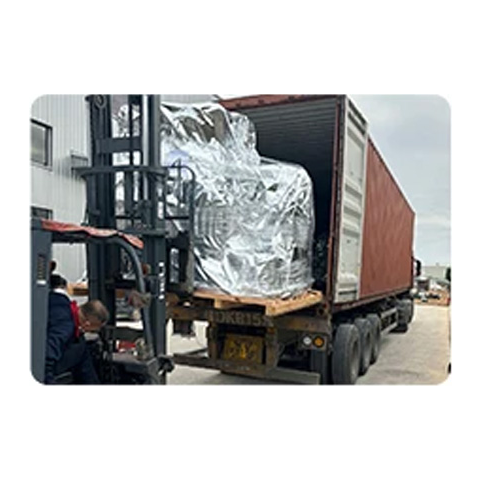

#SHIPMENT

#1. BUYER HAPPY TO RECEIVE OUR MACHINERY.

#2. BUYER HAPPY TO RECEIVE OUR MACHINERY.
