Our #SKS-767 / Shoe Fabric 3 System Flat knitting machine
What is the Shoe Fabric ?
Shoe fabric refers to any textile material used in the upper part of a shoe — the part that covers the foot and is visible from the outside. It plays a key role in the shoe’s appearance, comfort, performance, and breathability. Shoe fabric is the material used for the upper part of shoes, and it affects everything from performance to style. With innovations in knitting technology, especially 3D and seamless flat knitting, shoe fabrics are becoming smarter, lighter, and more sustainable.
| Type | Description | Used for |
| Knit Fabric | Created by interlooping yarns; stretchable and seamless | Sport shoes, running shoes |
| Mesh Fabric | Open-weave fabric for breathability | Sneakers, athletic footwear |
| Flyknit/Primeknit | Branded engineered knit uppers (Nike, Adidas) | Lightweight sportswear shoes |

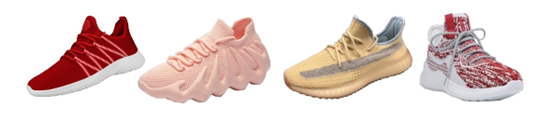

.png)
Why choose #SKS-767 ? Key Functions of making Shoe Fabric :
- Breathability – Keeps the foot cool and dry.
- Flexibility – Allows the foot to move naturally.
- Durability – Withstands daily wear and tear.
- Aesthetic Appeal – Determines the look, color, and design.
- Support & Comfort – Provides stretch or firmness where needed (e.g., heel, toe, instep).
- The "3-system" indicates it has three knitting systems (carriages) working independently or simultaneously, offering more flexibility and efficiency in knitting complex and multicolored structures.

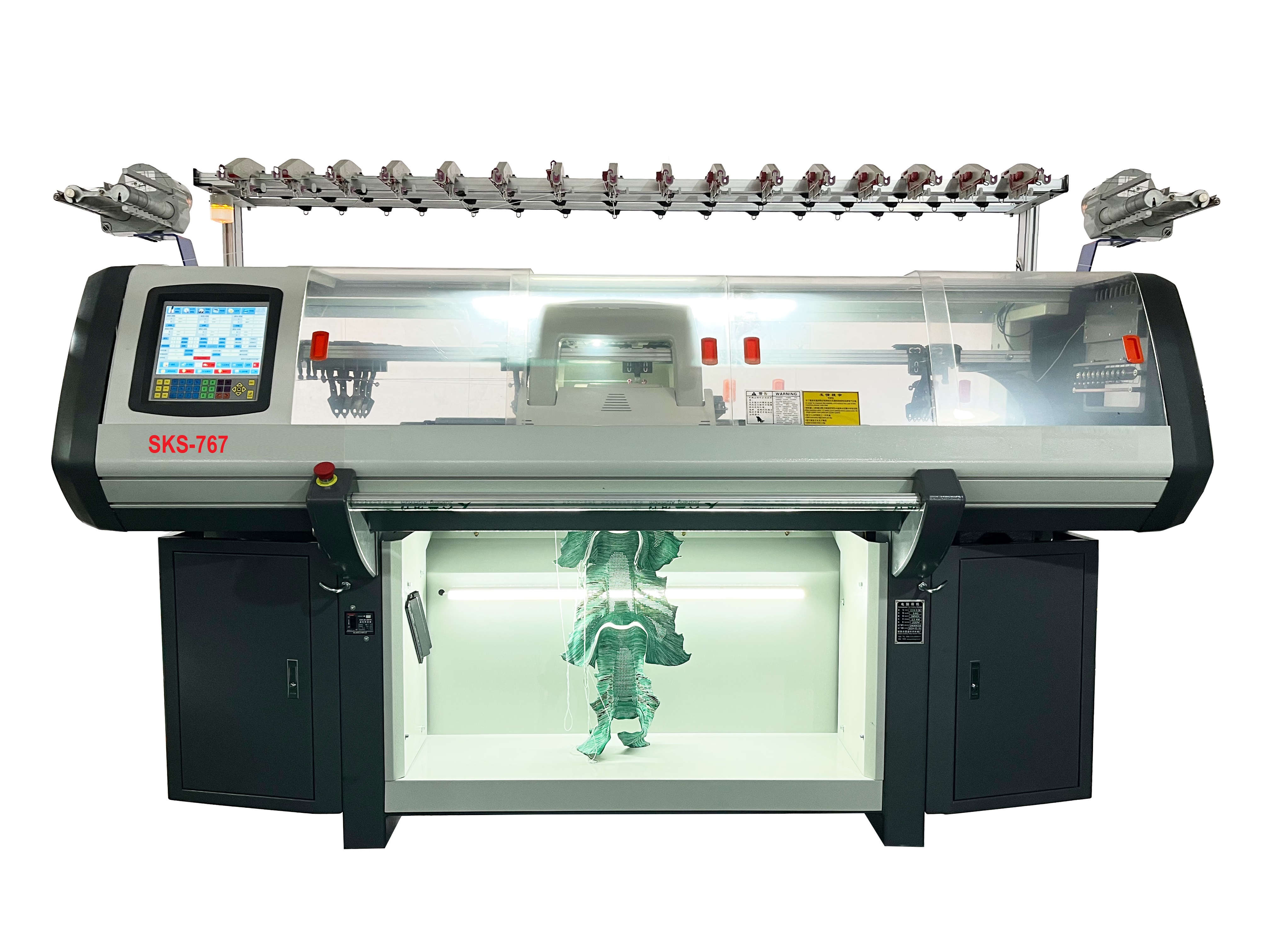

SKS-767( Shoe Upper Fabric 3 System Knitting Mc)
Function: Fully Jacquard type.
Application: to knit Jacquard fabric for Shoe.
.jpg)
.png)
.png)
#SKS-767 Key Functions of Shoe Fabric
- Breathability – Keeps the foot cool and dry.
- Flexibility – Allows the foot to move naturally.
- Durability – Withstands daily wear and tear.
- Aesthetic Appeal – Determines the look, color, and design.
- Support & Comfort – Provides stretch or firmness where needed (e.g., heel, toe, instep).
- The "3-system" indicates it has three knitting systems (carriages) working independently or simultaneously, offering more flexibility and efficiency in knitting complex and multicolored structures.
| Gauge | 14g / 16g |
| Width | 36,52,72 inch |
| System | 1x3 system. |
| Speed | Controlled by servo-motor with 32 sections optional, max speed reach 1.6m/s. |
| Function | Knit, miss, tuck, transfer, pointel, intarsia, jacquard, apparent or hide shaping and other regular or irregular patterns. |
| Racking | Controlled by servo-motor racking within 2 inches and with fine adjusting function. |
| Actuator | Advanced encoder reading pin.8-stage selecting needle setup composed of special electromagnet is regarded as efficient full width jacquard needle selector. |
| Stitch | Controlled by stepping motor, 32 section stitch selectable adjustable range supported by subdivision technology: 0-650, the stitch of the knitwear can be accurately controlled. |
| Transfer | Combined design, single or double cam system all can transfer together or separately. Also one cam do transfer , another cam system for knitting, which will achieve high-volume production. |
| Sinker system | Controlled by stepping motor, adjustable to different knitwear, up to be various results of shaping and patterns. |
| Comb | Grip or knock-over the yam reliably（Optional) |
| Cutters Grippers |
Include 2 cutters and 4 grippers, controlled by 6 motors respectively（Optional) |
| Take-down | Computer programs instruction,stepper motor control and 32-stagetension selection with an adjustable range between 0-100 |
| Color-changing system | 2×8 yarn feeders on each side of 4 guide rails, shiftable on any needle position. |
| Protection system | The machine will automatically alarm if yarn-breaking, knots, floating yarn, rewind, end of knitting, fail of racking, needle breakage, error programming occur, also set up the safety auto-lock protect device. |
| Control system |
|
| Network function | Has network interface,enable remote-monitoring via network, and connecting with ERP system. |

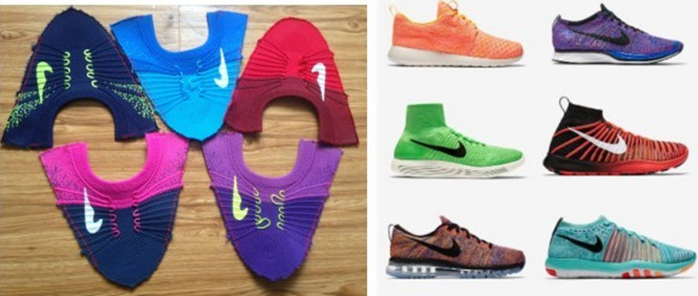

# Main Application
.png)
# Other Application
.jpg)
#SKS-767 / Specification
| Gauge | 14g / 16g |
| Width | 36,52,72 inch |
| System | 1x3 system. |
| Speed | Controlled by servo-motor with 32 sections optional, max speed reach 1.6m/s. |
| Function | Knit, miss, tuck, transfer, pointel, intarsia, jacquard, apparent or hide shaping and other regular or irregular patterns. |
| Racking | Controlled by servo-motor racking within 2 inches and with fine adjusting function. |
| Actuator | Advanced encoder reading pin.8-stage selecting needle setup composed of special electromagnet is regarded as efficient full width jacquard needle selector. |
| Stitch | Controlled by stepping motor, 32 section stitch selectable adjustable range supported by subdivision technology: 0-650, the stitch of the knitwear can be accurately controlled. |
| Transfer | Combined design, single or double cam system all can transfer together or separately. Also one cam do transfer , another cam system for knitting, which will achieve high-volume production. |
| Sinker system | Controlled by stepping motor, adjustable to different knitwear, up to be various results of shaping and patterns. |
| Comb | Grip or knock-over the yam reliably（Optional) |
| Cutters Grippers |
Include 2 cutters and 4 grippers, controlled by 6 motors respectively（Optional) |
| Take-down | Computer programs instruction,stepper motor control and 32-stagetension selection with an adjustable range between 0-100 |
| Color-changing system | 2×8 yarn feeders on each side of 4 guide rails, shiftable on any needle position. |
| Protection system | The machine will automatically alarm if yarn-breaking, knots, floating yarn, rewind, end of knitting, fail of racking, needle breakage, error programming occur, also set up the safety auto-lock protect device. |
| Control system |
|
