SOCK MACHINERY

Detail
Our company have professional workshop of CNC high precision lathes, milling machines Division and professional for spare parts manufacturing, in order to ensure and control quality and standards of accessories. We own trained team of R&D, and with domestic and international after-sale service system. Our culture always is quality first, customer foremost!

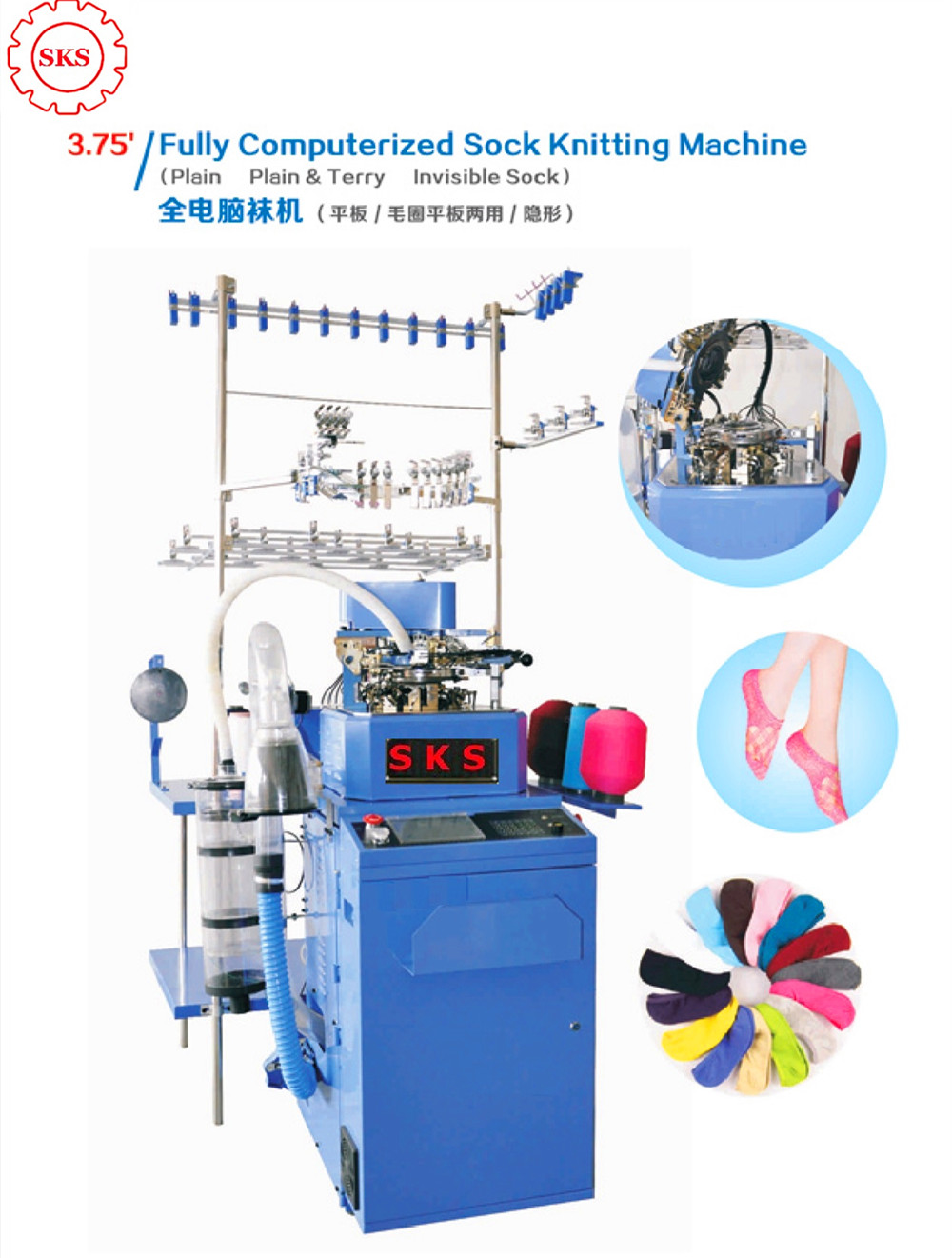

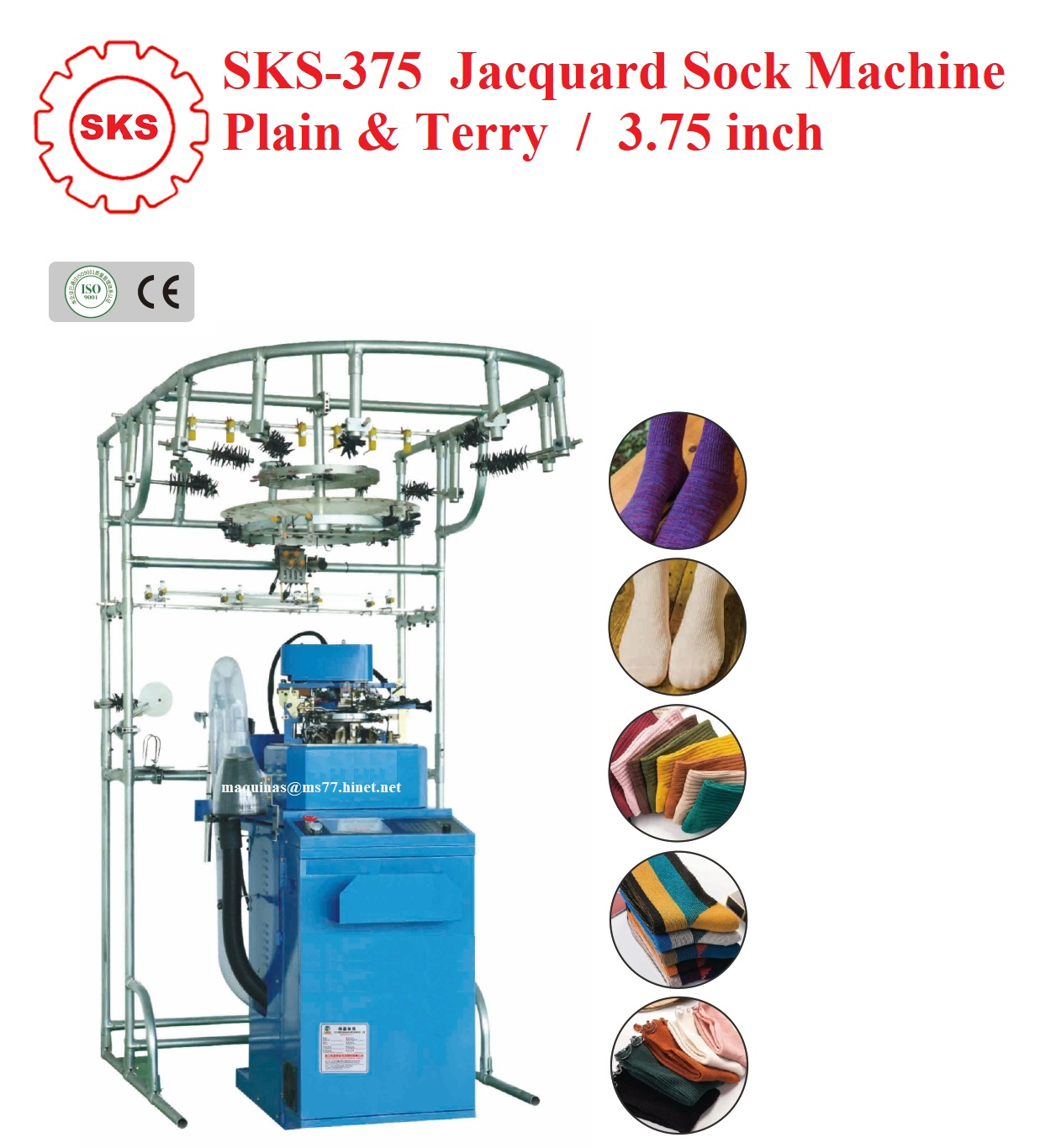

SKS-375 Fully Computerized Terry & Plain Socks Knitting Machine
  1. High-Quality Needle System – All needle system components are manufactured with advanced wear-resistant technology, ensuring excellent stability, durability, and long service life.
  2. Fully Computerized Control – Precision knitting operations are managed by an advanced computer control system.
  3. Electro-Pneumatic Yarn Finger & Cam Control – Guarantees accurate, efficient, and smooth yarn selection.
  4. Stepping Motor Technology – Dedicated stepping motors control elastic yarn feeding and stitch cam adjustment for consistent performance.
  5. Advanced Heel Knitting – Double pick and double-lift needle design enables “Y heel” knitting and 3D double-elastic sock structures.
  6. Automatic Error Detection – Integrated sensors stop the machine immediately when an error occurs to protect fabric and machine parts.
  7. Flexible Yarn Feeding – Option of up to 2 main feeds and 5 pattern feeds, supporting up to 16 colors.
  8. UPS Backup System – Retains program memory and knitting status during power interruptions; automatically resumes knitting when power is restored.
  9. User-Friendly Operation – Convenient keyboard and LCD interface for easy programming and monitoring.
  10. Optimized Lubrication System – Fine mist oiling of the needle tube provides even lubrication, reducing fabric contamination and ensuring smooth operation.
  • Item: Machines for Making Socks
  • Type: Jacquard Knitting Machine
  • Brand Name: Rainbowe
  • Place of Origin: Zhejiang, China
  • HS Code: 84471100
  • Warranty: 1 Year
  • Outgoing Inspection: Video inspection provided
  • Machinery Test Report: Not available
Technical Parameters
  • Voltage: 220V / 380V / 415V (optional)
  • Power: 1.5 KW
  • Weight: 300 KG
  • Dimension (L×W×H): 0.94 × 0.75 × 1.55 M
  • Production Capacity: 250–400 pairs / 24 hours (depending on sock size)
  • Cylinder Diameter: 3.75''
  • Needle Count: 96N, 108N, 120N, 144N, 156N, 168N, 200N
  • Sock Types: Terry & Plain socks
Core Components
  • Motor: High-quality servo motor (YMK brand, stable performance)
  • Controller / Display: Mingde or Glory brand
Key Selling Points
  • Easy to operate
  • Stable performance with reliable servo driving system
  • Suitable for a wide range of sock types and sizes
Color Options
  • Blue
  • Grey
Packaging & Delivery
  • Selling Units: Single item
  • Package Size: 100 × 140 × 240 cm
  • Gross Weight: 300 KG
  • Packaging Material: Standard export wooden case

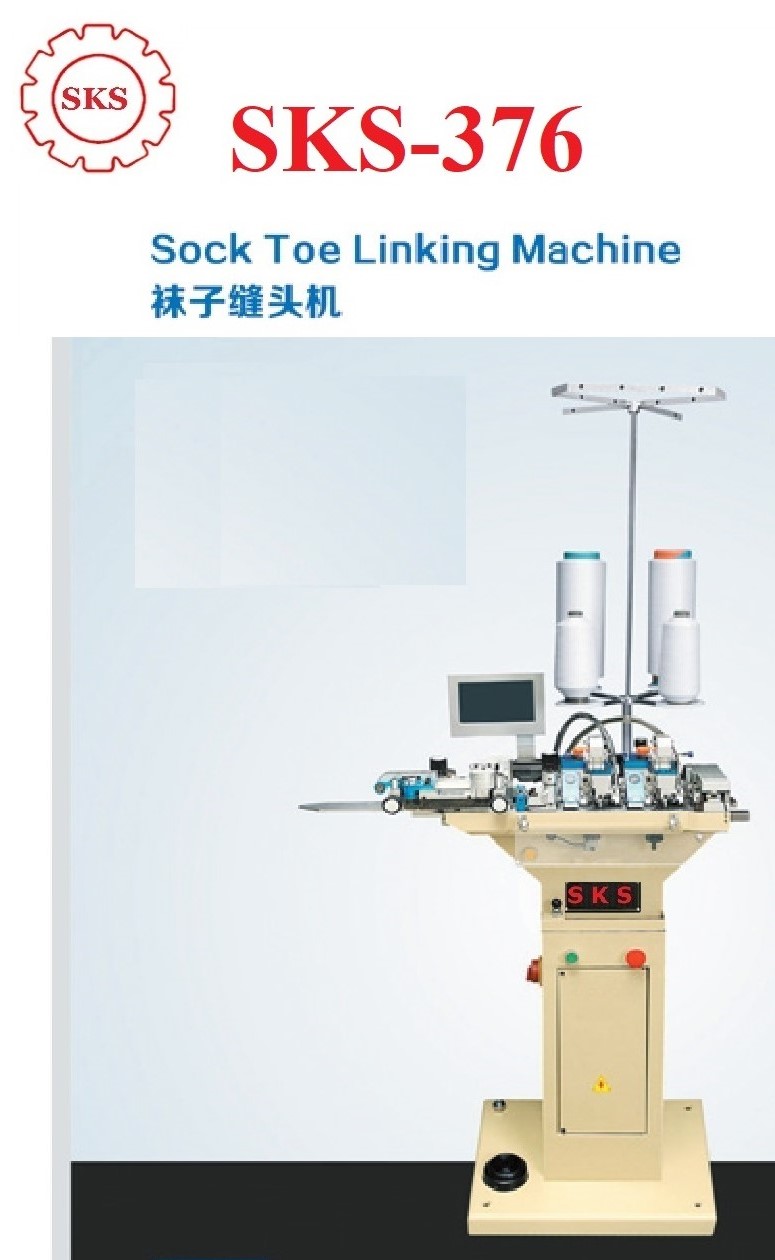

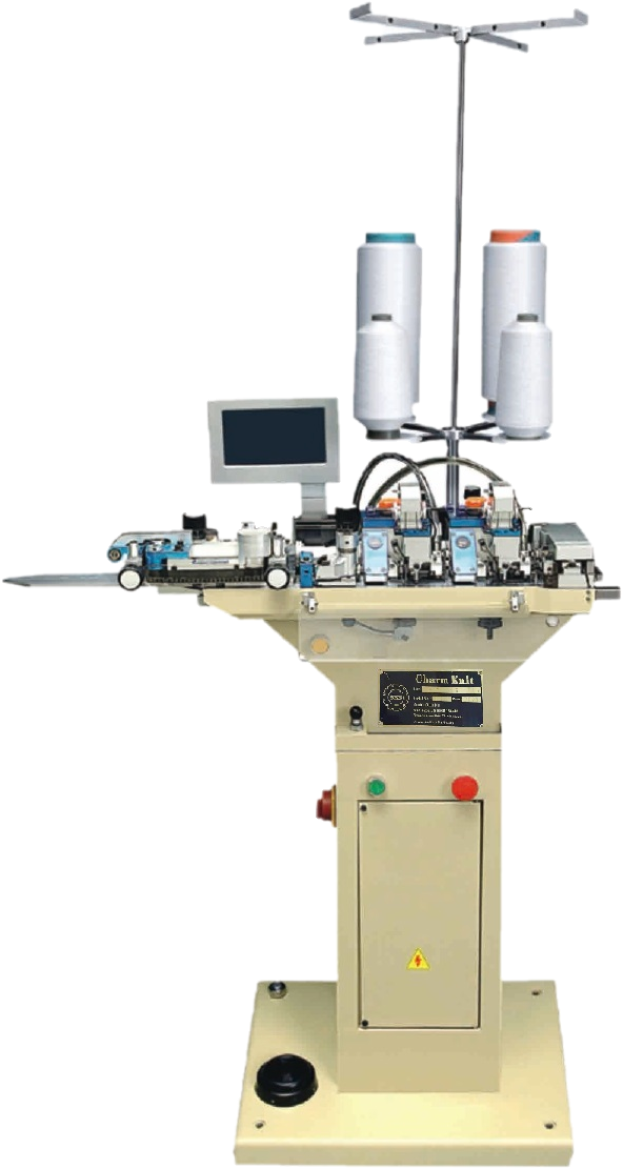

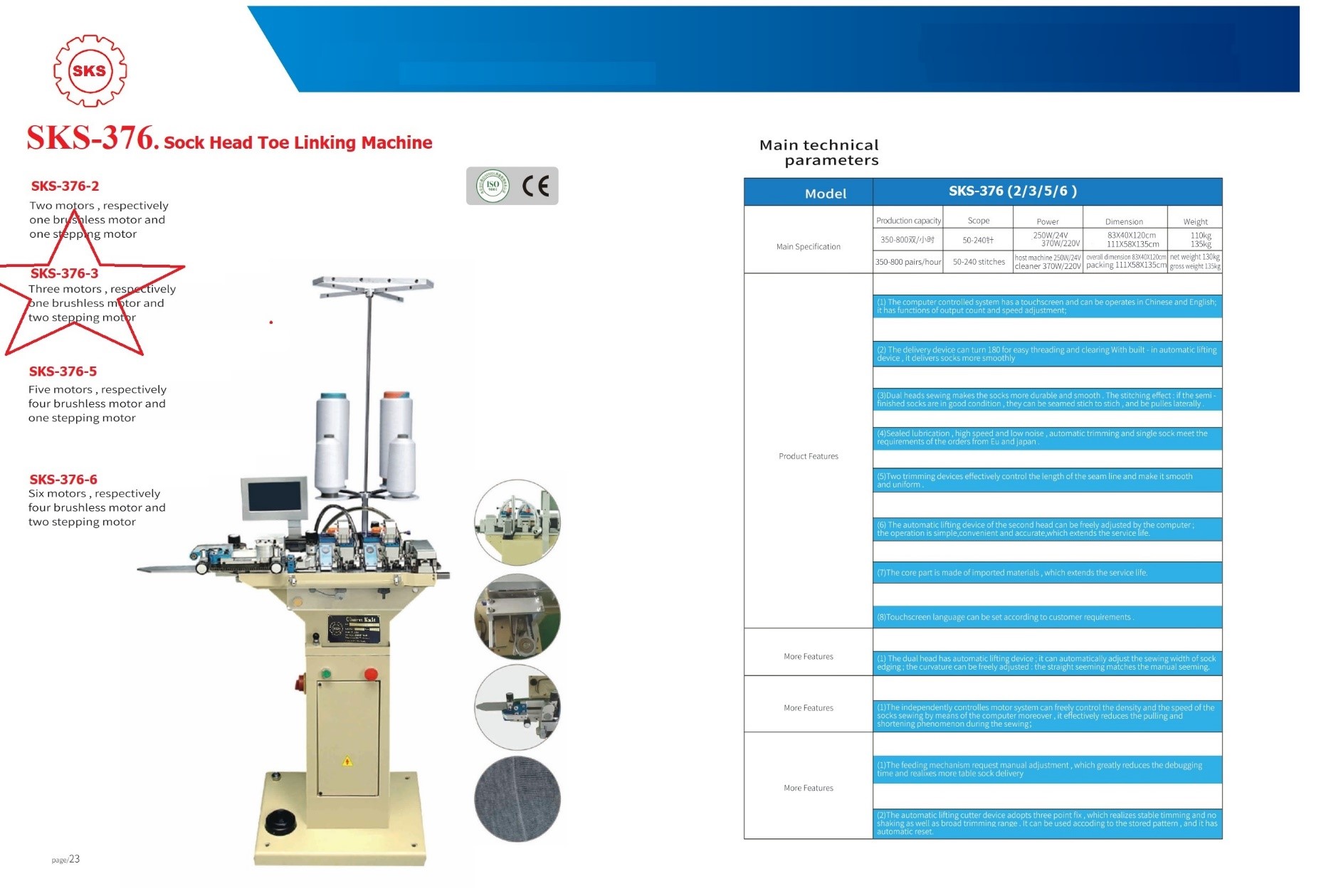

Mode no: SKS-376 / High Speed Sock Toe Linking Machine ( with 2 motors )
Function: SKS-376 is a specialized machine used in the final stage of sock production to close (link) the toe part of the sock.
When socks come out of the knitting machine, the toe area is still open. Instead of using traditional sewing (which can leave a bulky seam), a toe linking machine neatly joins the two edges of the sock toe together, making it smooth and comfortable to wear.

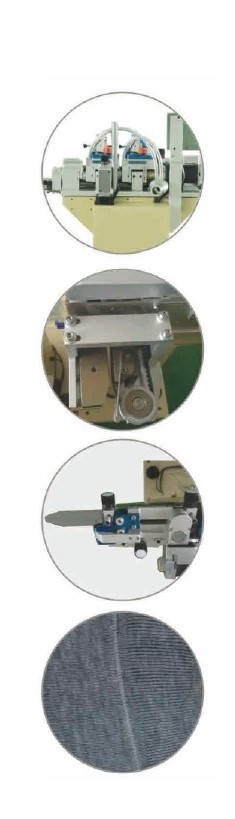

  1. Automatic Lubrication System
Equipped with an automatically lubricating nose device to extend machine life, ensure stable operation, and create a quieter working environment.
  1. Automatic Cutting Device
Integrated automatic thread cutting function guarantees uniform suture length, improving consistency and efficiency.
  1. Convenient Yarn Feeding & Hoisting System
Turnover yarn feeding device allows for easy yarn cleaning.
Built-in automatic hoisting device ensures smooth sock conveyance and maintains sock flatness during operation.
  1. Optical Fiber Induction with Adjustable Time-Lapse Feeding
Optical fiber sensor enables delayed yarn feeding based on running speed.
Effectively reduces unnecessary thread waste, enhancing cost efficiency.
  1. Dual-Channel Nose Device
Ensures socks are sewn with fine, flat seams, providing comfort comparable to hand-linking.
  1. Touch Screen Computer Control System
User-friendly point-contact touch screen interface simplifies operation and enhances precision.
  1. Independent Motor Control for Dual-Channel Heads
Stitch density can be adjusted in real time via computer.
Allows precise seam closure to imitate hand-stitching, or separate tension adjustment to suit various sock types.
  1. Dedicated Conveyor Drive Motor
Independent motor control for the conveyor chain effectively regulates sock elongation or shortening during sewing.
Ensures adaptability to different sock styles and requirements.
  1. Intermediate Automatic Hoisting & Anti-Dropping Device
Positioned between the first and second nose, preventing socks from slipping off unexpectedly. Greatly improves flatness and seam quality, achieving results close to manual sewing.

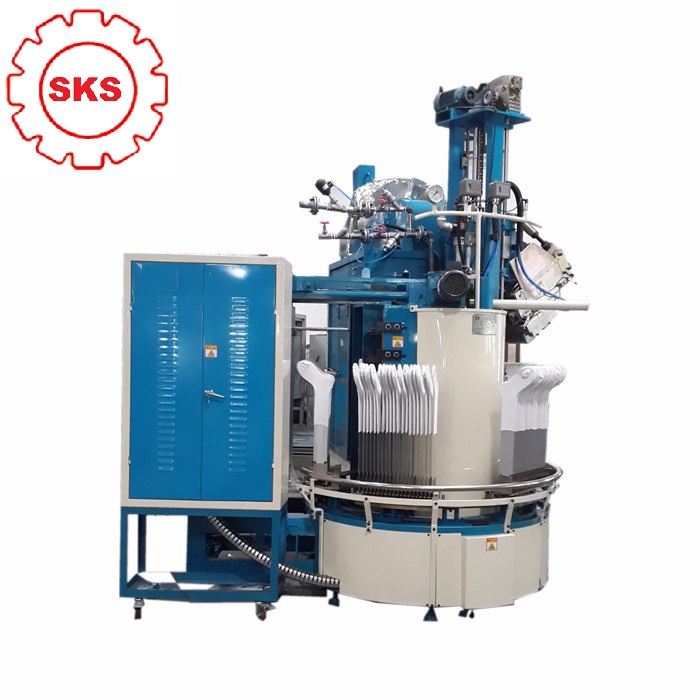

SKS-377
BOXED SOCK BOARDING STENTER MACHINE



#SKS-377 is specially designed for the efficient finishing of socks, underwear, and hats. It integrates shaping, styling, and drying functions in one unit, offering a compact structure and user-friendly operation.
MAIN PARAMETER
Socks Form 60pcs
(15*4groups)		 100 pcs (20*5groups) 180 pcs (30*6groups)
Capacity
(Doz/ h）		 Steam Pressure(1.5kg/cm) 65 95 120
Steam Pressure(1.8kg/cm) 60 90 118
Steam Pressure(2.0kg/cm) 55 80 110
Steam Pressure(2.3kg/cm) 50 75 98
Steam Pressure(2.5kg/cm) 45 70 95
Cycle Time(group/ sec) 18-36 18-36 18-36
Operator 2 2 3

Power Requirement 3.7KW 3.7KW 5KW
Air Requirement 5-7kgf/cm2
Steam Requirement Max 145kg/h Max 200kg/h Max 30kg/h
Steam Chamber 0.148 m3 0.172 m3 0.252 m3
Dimension(L*W*H, mm) 1800*2300*2300 2100*2500*2300 2800*3200*2300

Main Functions
  • Shape setting: fixes socks into a neat, standard size and shape
  • Wrinkle removal: steam softens fibers and eliminates wrinkles
  • Appearance improvement: enhances overall look and quality before packaging
  • Durability and fit: stabilizes fabric structure for better elasticity and fit
  • Moisture control: integrates drying after steaming for improved efficiency
Key Features
  • Box-type multi-pair design for high productivity
  • Adjustable steam and heating system suitable for different yarns (cotton, wool, polyester, spandex, etc.)
  • Automatic control with digital or PLC operation for temperature, steam, and timing
  • Energy-efficient insulated chamber to minimize heat loss
  • Uniform finishing for consistent size and smooth surface
  • Optional cooling and drying functions with hot air or fans
Technical Specifications
  • Model: SKS-377
  • Voltage: 220V / 380V
  • Power: 15 kW
  • Main motor: 1.1 kW
  • Number of poles: 10
  • Pole length: 460 mm
  • Maximum capacity per cycle: 200 pairs
  • Production capacity: up to 1200 pairs per hour
  • Cycle time: 10–20 minutes
  • Net weight: 300 kg
  • Machine size: 800 × 530 × 1200 mm
  • Overall dimension: 1300 × 880 × 1700 mm
  • Stocking capacity: 400 slices
Packaging and Delivery
  • Selling unit: single item
  • Warranty: 1 year (core components covered)
  • Video outgoing inspection: provided

Main Functions
  • Shape setting: fixes socks into a neat, standard size and shape
  • Wrinkle removal: steam softens fibers and eliminates wrinkles
  • Appearance improvement: enhances overall look and quality before packaging
  • Durability and fit: stabilizes fabric structure for better elasticity and fit
  • Moisture control: integrates drying after steaming for improved efficiency
Key Features
  • Box-type multi-pair design for high productivity
  • Adjustable steam and heating system suitable for different yarns (cotton, wool, polyester, spandex, etc.)
  • Automatic control with digital or PLC operation for temperature, steam, and timing
  • Energy-efficient insulated chamber to minimize heat loss
  • Uniform finishing for consistent size and smooth surface
  • Optional cooling and drying functions with hot air or fans
Technical Specifications
  • Model: SKS-377
  • Voltage: 220V / 380V
  • Power: 15 kW
  • Main motor: 1.1 kW
  • Number of poles: 10
  • Pole length: 460 mm
  • Maximum capacity per cycle: 200 pairs
  • Production capacity: up to 1200 pairs per hour
  • Cycle time: 10–20 minutes
  • Net weight: 300 kg
  • Machine size: 800 × 530 × 1200 mm
  • Overall dimension: 1300 × 880 × 1700 mm
  • Stocking capacity: 400 slices
Packaging and Delivery
  • Selling unit: single item
  • Warranty: 1 year (core components covered)
  • Video outgoing inspection: provided
