Stainless Bobbin

Stainless Steel Bobbin For Dyeing Cone Machine

Applications:
Suitable for use in various dyeing machines, including high-temperature dyeing machines, air flow dyeing machines, and jet dyeing machines. Ideal for dyeing a wide range of textiles, including cotton, polyester, nylon, and blends.

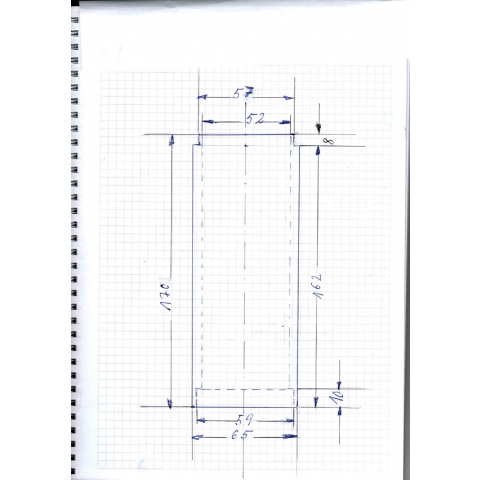

Parameter (Specification)

Specification	Inner Dia.(mm)	Length(mm)	Spring (mm)	Net thread(mm)
S1	45±1	178+2	3.0	1.0
S2	56±1	170+2	3.0	1.0
S3	56±1	170+2	3.5	0.9
S4	56±1	230+2	3.0	1.0
S5	58±1	180+2	3.0	1.0
S6	58±1	250+2	3.0	1.0
S7	58±1	290+2	3.2	1.0
S8	63±1	250+2	3.2	1.0

Feature and Application

1.Superior Durability: Made from robust stainless steel, these bobbins ensure long-lasting performance and resistance to wear and tear.

2.High Temperature and Pressure Resistance: Perfect for dyeing processes that require extreme conditions, maintaining structural integrity without deformation.

3.Corrosion Resistance: Stainless steel offers excellent resistance to chemicals and moisture, reducing the risk of contamination and ensuring consistent dye quality.

4.Precision Engineering: Designed for optimal yarn support and dye penetration, resulting in uniform and vibrant coloration.

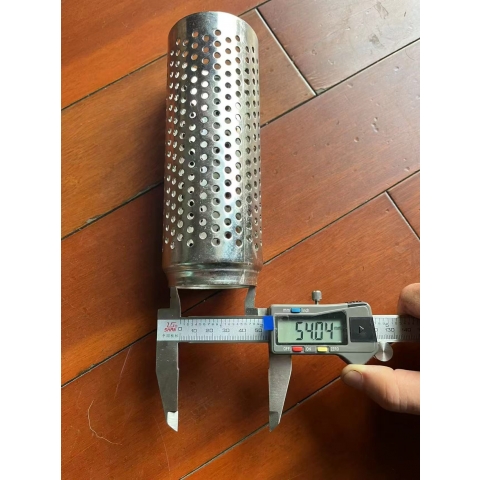

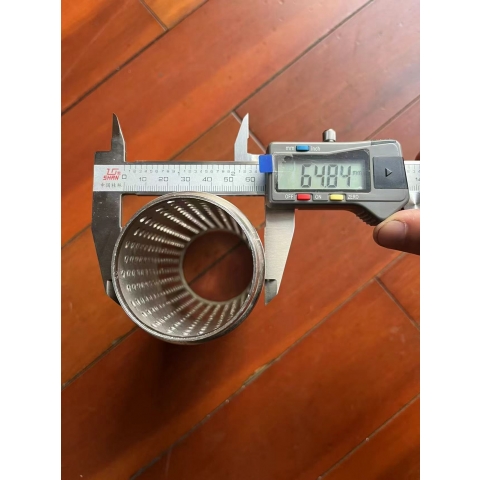

5. Perforated Structure: Features a perforated design that allows optimal dye penetration and circulation, ensuring even and thorough dyeing of yarns.

6. Smooth Surface Finish: The smooth, polished surface prevents yarn damage and facilitates easy handling and cleaning.

7. Precision Engineering: Engineered with tight tolerances to ensure perfect fitting and alignment in dyeing machines, reducing the risk of mechanical issues during the dyeing process.

8. High Temperature Resistance: Capable of withstanding temperatures up to 300°C, suitable for high-temperature dyeing processes

9 Pressure Resistance: Designed to endure high-pressure environments, ensuring stability and reliability in pressurized dyeing operations.

10. Corrosion Resistance: The stainless steel material provides superior protection against chemicals and moisture, ensuring longevity and consistent performance.

We are specialized in the design and manufacture of below spool, we are pleased to share the best price with your company.
