SKS-75D/ YARN CONE DYEING MC

Detail

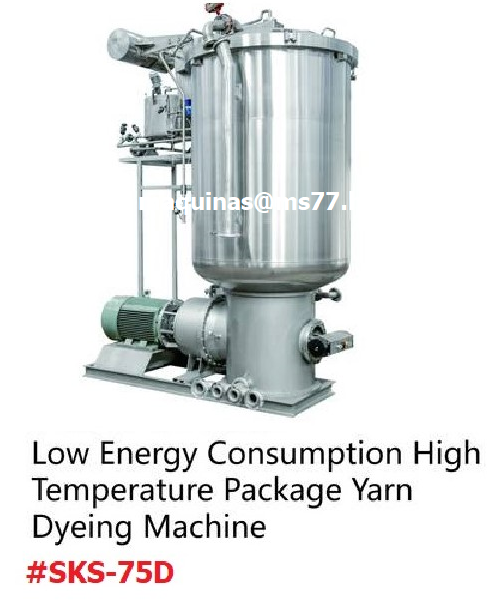

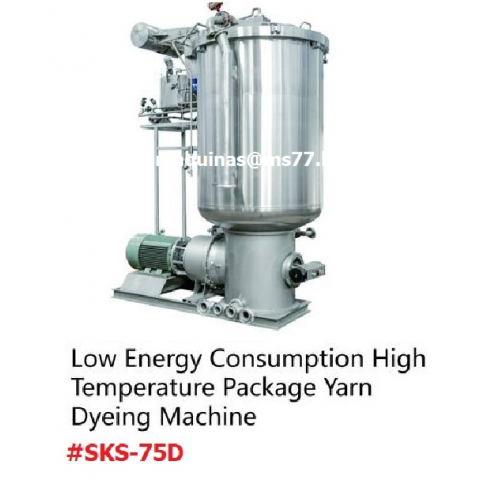

#SKS-75D/ HTHP Yarn Cone Dyeing Machine
1. Strong Circulation Pump
    Ensures even dye penetration, no color difference between inner and outer layers of the cone.
    High-Quality Stainless Steel Tank (SUS 304 / 316)
  • Anti-corrosion
  • Long service life
  • Suitable for all chemical dyes
2. Precise Temperature & Pressure Control System
  • Stable dyeing process
  • Prevents yarn damage
  • Improves color fastness
3. Energy & Water Saving Design
  • Low steam consumption
  • Reduced water usage
  • Low operating cost
4. User-Friendly Control Panel (SETEX PLC)
  • Easy operation
  • Automatic dyeing programs
  • Less labor required
5. Strong Mechanical Structure
  • Low vibration
  • Stable long-term running
  • Suitable for 24-hour production









​​# EQUIPMENT & SETEX PLC ( STANDARD )
  1. All liquor-carring main parts are used stainless steel 316L.
  2. Main pump motor with frequency inverter.
  3. High-efficient stainless steel pum
  4. Complete one set cone yarn carrier.
  5. 90° pipe type reversing direction reverser.
  6. Internal heating exchanger system.
  7. Dyestuff tank: mixing, drain, heating, adding dystuff.
  8. Pressure relief device/system.
  9. Stainless steel electrical cabinet with advanced computer.
  10. SETEX PLC system.
 ​​# OPTIONAL
  1. Semi auto/ auto system
  2. Equal volume standby water tank with direct heating system
  3. Second inflow and second drain system
  4. Second set cone yarn carrier
  5. Second dyestuff tank with auto/semi auto control system

#SKS-75D is a good quality Yarn Cone Dyeing Machine for users!

  • More uniform dyeing

  • Lower production cost

  • Stable quality

  • Long machine lifetime

  • High production efficiency


SKS-75D / SPECIFICATION
MODEL SPINDLE X LAYER NO. OF PACKAGES MAIN POWER(KW)
1 1 X (3-5) 3-5 2.2
2 3 X 4 12 3.7
3 4 X 4 16 5.5
4 4 X 5 20 5.5
5 6 X 5 30 7.5
6 12 X 6 72 11
7 18 X 6 108 15
8 18 X 7 126 15
9 19 X 8 152 18.5
10 28 X 8 224 22
11 36 X 7 252 22
12 36 X 8 288 30
13 39 X 9 351 37
14 46 X 9 414 37
15 62 X 9 558 55
16 69 X 10 690 55
17 90 X 10 900 75
18 108 X10 1080 90
19 108 X 11 1188 90
20 125 X 11 1375 110
