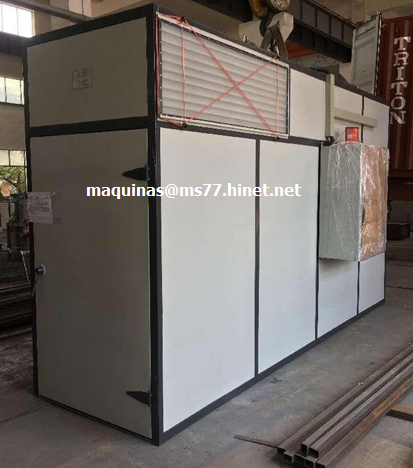

SKS-75R/ YARN CONE DRYER

Detail

#SKS-75R Yarn Cone Dryer is a modern, high-performance machine developed with advanced engineering technology. It removes moisture through controlled heat energy, allowing water molecules to evaporate efficiently and reach the preset moisture level. Based on thermodynamics and aerodynamics, the optimized hot air circulation and wet air exhaust system ensure high output efficiency with low energy consumption. The advanced PID temperature control system provides precise and user-friendly operation on site.

#SKS-75R / YARN CONE STEAM DRYER
  1. Working temperature 80℃~110℃
  2. Steam pressure 0.4~0.6Mpa
  3. General power 11KW
  4. Drying time 2-2.5H/batch.
  5. Dimension: 3400*1450*2250mm
  6. Main body Carbon Steel Plate
  7. Door With safety lock and door seal

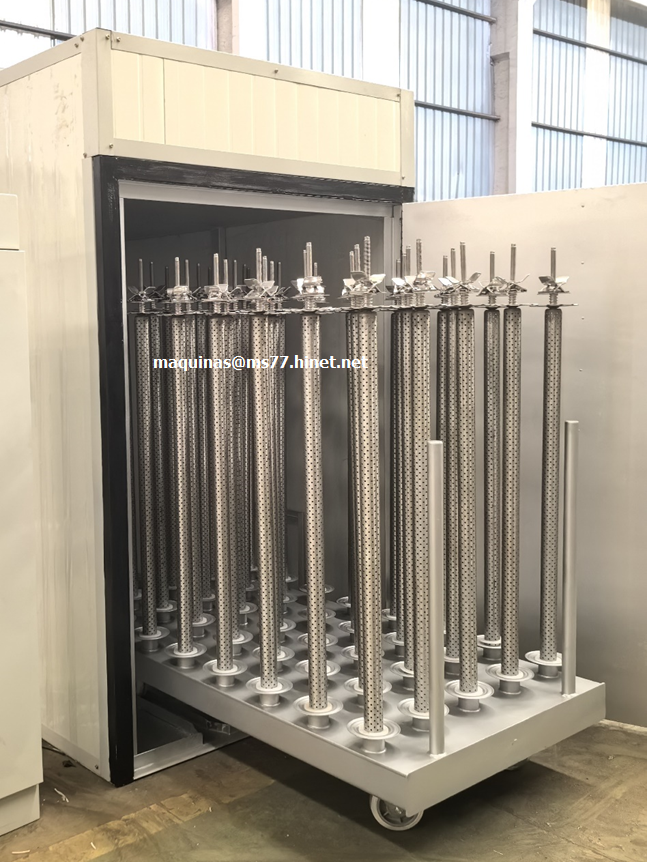

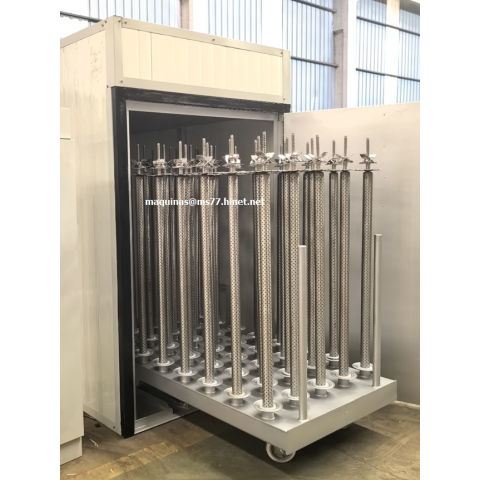

  8. Carrier 1 SET
  9. Cone yarn size length of bobbin:171mm, Dia. of cone yarn 165mmBlower 1 sets China Brand
  10. Valve Heating valve (Pneumatic proportional valve)- Brand: YTC (Korea)
  11. Trap-Brand: JINGBANG (China)
  12. Y valve-Brand: ZHENGCHENG (China)
  13. Electric Components: Schneider
  14. Heating exchanger heatsink uses aluminum spiral fins
  15. Filter 1 SET
  16. Electric Cabinet 1 SET/ Germany
  17. Electrical Unit Controller - Brand:
  1. Touch Win(controller with 2 password)
  2. PLC - Brand: TOUCHWIN
  3. Main electrical element-Brand: Siemens and Omron.
  4. Frequency Inverter-Brand: Top China brand.
  5. Solenoid Valve-Brand: JELPC brand
  6. Temperature measuring probe-PT100-Brand:HUA



Key Advantages
1. Fast Drying Speed: According to field data, the evaporation capacity exceeds 110 kg/hour, significantly higher than standard hot air circulation dryers.
2. Low Energy Consumption: High-grade thermal insulation, optimized structure, automatic steam regulation, and frequency-controlled fans minimize heat and power usage, reduce maintenance, and lower failure rates.
3. Accurate Temperature Control: The PID system guarantees temperature accuracy within ±0.5°C.
4. High-Performance Air Filtration: Large-capacity, low-resistance filters ensure clean hot air and trigger automatic alarms when cleaning is required.
