#SKS-DWS
Double winder for stranded yarns with Doubling & Air
| Model Number | SKS-DWS |
| Spindle gauge | 460mm |
| Process material | l kinds spun yarn/filament |
| operating mode | Manual |
| Per-section spindles | 4 spindles |
| Unit section numbers | ≤12/Section |
| Yarn strand | 2~32 plies with the yarn frame |
| Winding speed | <500r/min |
| Winding bobbin size | Customized |
| Tank size | 210, 260mm |
| Winding weight | <10KG |
| Standard spindle number | 40 spindles |

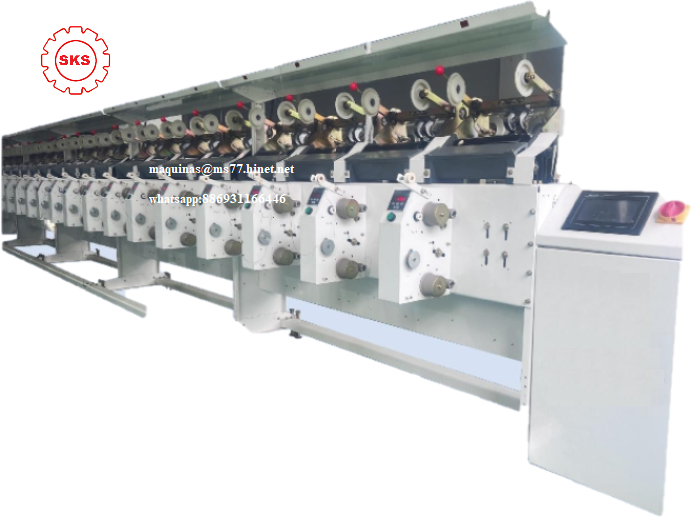

SKS-DWS
High-Speed Cone Winding Machine with Doubling & Air System
This machine is specifically developed for multi-strand yarn processing.
It adopts an advanced yarn-guiding and head-forming system, effectively preventing yarn entanglement or netting during the winding process, ensuring stable and reliable operation.
The machine is designed with a single-spindle, independent control system.
By separating the winding motor and bobbin motor, operators can adjust process parameters more precisely and conveniently, allowing flexible control for different yarn types and winding requirements.
According to customer requirements, the machine can be equipped with a multi-strand yarn creel.
Each yarn position is fitted with an individual yarn sensor. In case of yarn breakage, the machine stops automatically, with a response time of less than 1 second, minimizing waste and downtime.
Key Advantages & Benefits
1. High Production Efficiency
High-speed winding significantly increases output per spindle.
Ideal for mills seeking to reduce processing time and labor costs.
2. Doubling Function (2-ply / Multi-ply)
Combines two or more yarns into a single, uniform package.
Improves yarn strength, evenness, and fabric appearance.
Reduces yarn breakage during knitting or weaving.
3. Air Splicing / Air System
Produces knot-free yarn joints for a smooth fabric surface.
Enhances knitting efficiency and reduces machine stoppages.
Especially suitable for high-end fabric and garment production.
4. Uniform & Stable Cone Build
Precision tension control ensures excellent cone shape and density.
Guarantees smooth unwinding on circular knitting, warp knitting, and weaving machines.
5. Consistent Yarn Tension Control
Advanced electronic or mechanical tension devices maintain stable yarn tension.
Improves fabric quality and reduces defects.
6. Wide Yarn Compatibility
Suitable for cotton, polyester, DTY, FDY, nylon, viscose, and blended yarns.
Capable of handling elastic or special yarns with stable performance.
7. Reduced Waste & Lower Operating Cost
Automatic stop and stable winding reduce yarn loss and reworking.
Lowers energy consumption and long-term maintenance costs.
8. Easy Operation & Maintenance
User-friendly control interface.
Quick and easy adjustment for different yarn counts and cone sizes.
Optional One-Line Positioning
9. SKS-DWS
A high-speed, intelligent cone winding solution delivering stronger yarn, knot-free packages, and maximum production efficiency.
